Type RS

SKU: RS12/3000/9010
£11.61
£13.93 Inc VAT
RAL 9010 In stock - Same day dispatch before 2pm
Other colours may vary - check the colour name for specific lead times

About this product

  • ✓8MM PLASTERBOARD
  • ✓REVEAL DETAIL
  • ✓RAL 9010
  • ✓3.0M LENGTHS
Free UK DeliveryFree UK DeliveryOn hardware orders £200+
Money-back guaranteeMoney-back guaranteeBuy with confidence
Expert adviceExpert adviceHere to help

Key Features

  • Reveal for 8mm board

    Used with 8mm plasterboard to create a horizontal or vertical reveal detail at drylining, suspended ceilings, door frames, skirting and window frames.

  • Punched flange

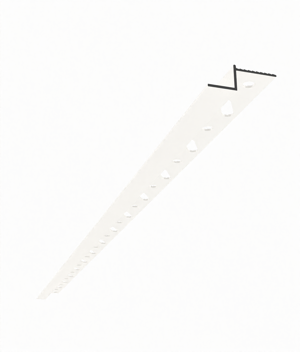

    Punched flange down one side for easy fixing.

  • Architectural aluminium

    Extruded from architectural grade Aluminium 6063-T6 for a straight, durable profile.

  • RAL 9010 as standard

    Standard RAL 9010. Other colours/finishes on request.

  • 3000mm lengths

    Supplied in standard 3.0m lengths for efficient runs and less waste on site.

  • Can be curved

    Can be curved to suit your layout, dependent on radius.

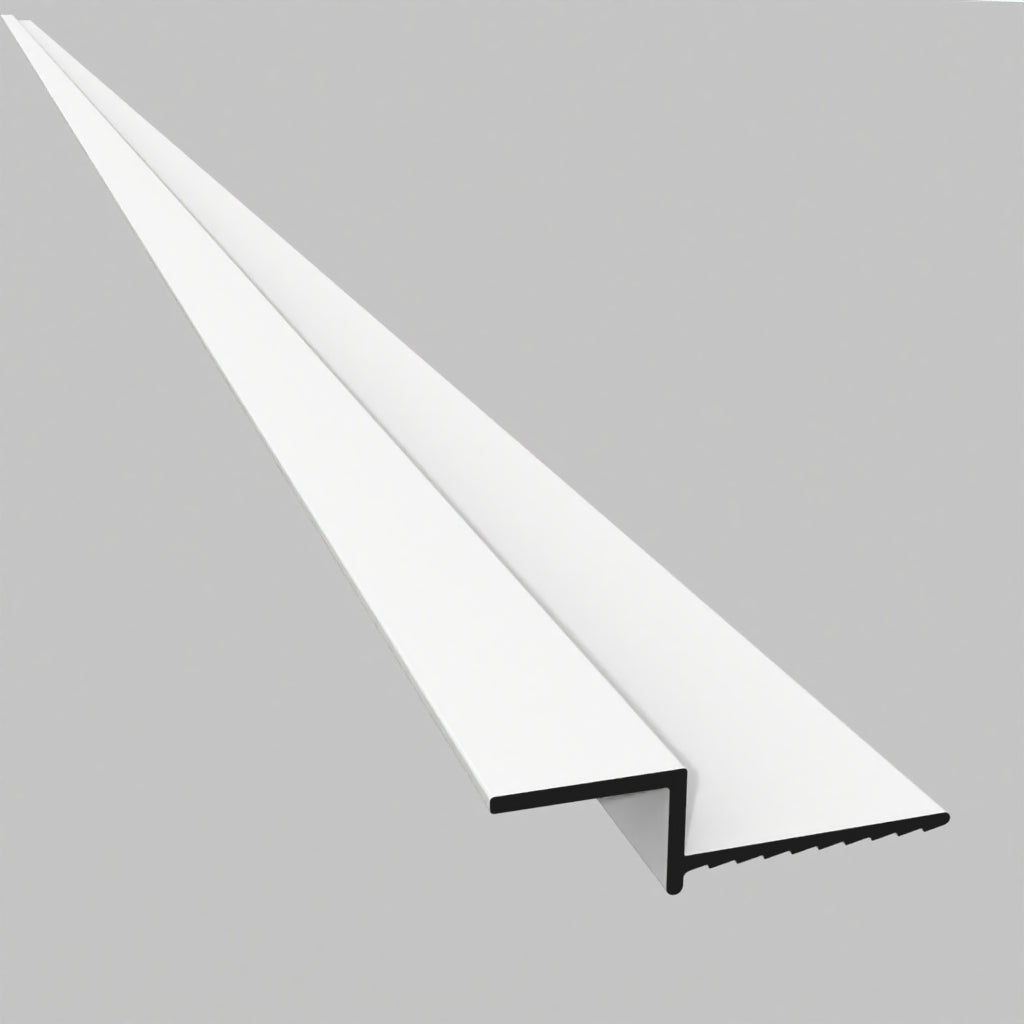

The Type RS trims are to be used in conjunction with 8mm plasterboard. The trim is to be used in a horizontal or vertical setting to create a reveal detail. Can be used in a variety of different settings, including but not exclusive to drylining, suspended ceilings, door frames, skirting and window frames.

  • Supplied in 3000mm Lengths
  • Standard RAL colour of 9010 (Other RAL colours available on request)
  • Curving available radius dependent
  • Punched flange for easy fixing to plasterboard
  • Extruded from architectural grade aluminium alloy to BS1474

IF YOU ARE USING 12.5MM PLASTERBOARD USE TYPE R PROFILE, LINK BELOW

TYPE R PROFILE

Ideal For: Drylining contractors, interior fit-out specialists, and plasterers working on residential developments, commercial refurbishments, and new-build projects using 8mm plasterboard for suspended ceilings, door frames, skirting, and window reveals requiring professional edge detailing.

<table><tbody><tr><td>Product Type</td><td>Type RS trim</td></tr><tr><td>Sizes</td><td>RS12</td></tr><tr><td>Length</td><td>3000 mm</td></tr><tr><td>Material</td><td>Aluminium 6063-T6</td></tr><tr><td>Finish</td><td>Standard RAL 9010 - other RAL on request</td></tr><tr><td>Board</td><td>8 mm plasterboard</td></tr><tr><td>SKU</td><td>RS12/3000/9010</td></tr></tbody></table>

What is this trim used for?

Used with 8mm plasterboard to create a horizontal or vertical reveal detail at drylining, suspended ceilings, door frames, skirting and window frames.

Can this trim be curved?

Yes, dependent on the radius needed. Email sales@qic-direct.com with the trim and the radius required and we will check it is possible and send a quote.

I'm using 12.5mm plasterboard - which trim do I need?

Use our Type R profile for 12.5mm plasterboard.

Can I get a different colour?

Yes. Other RAL colours and finishes are available on request. Email sales@qic-direct.com with the colour you need and we will confirm price and lead time.

Where can I find the full dimensions?

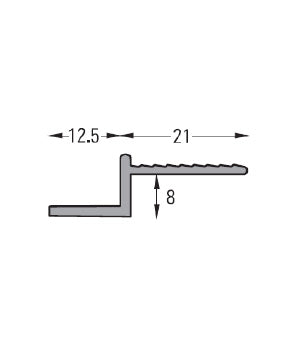

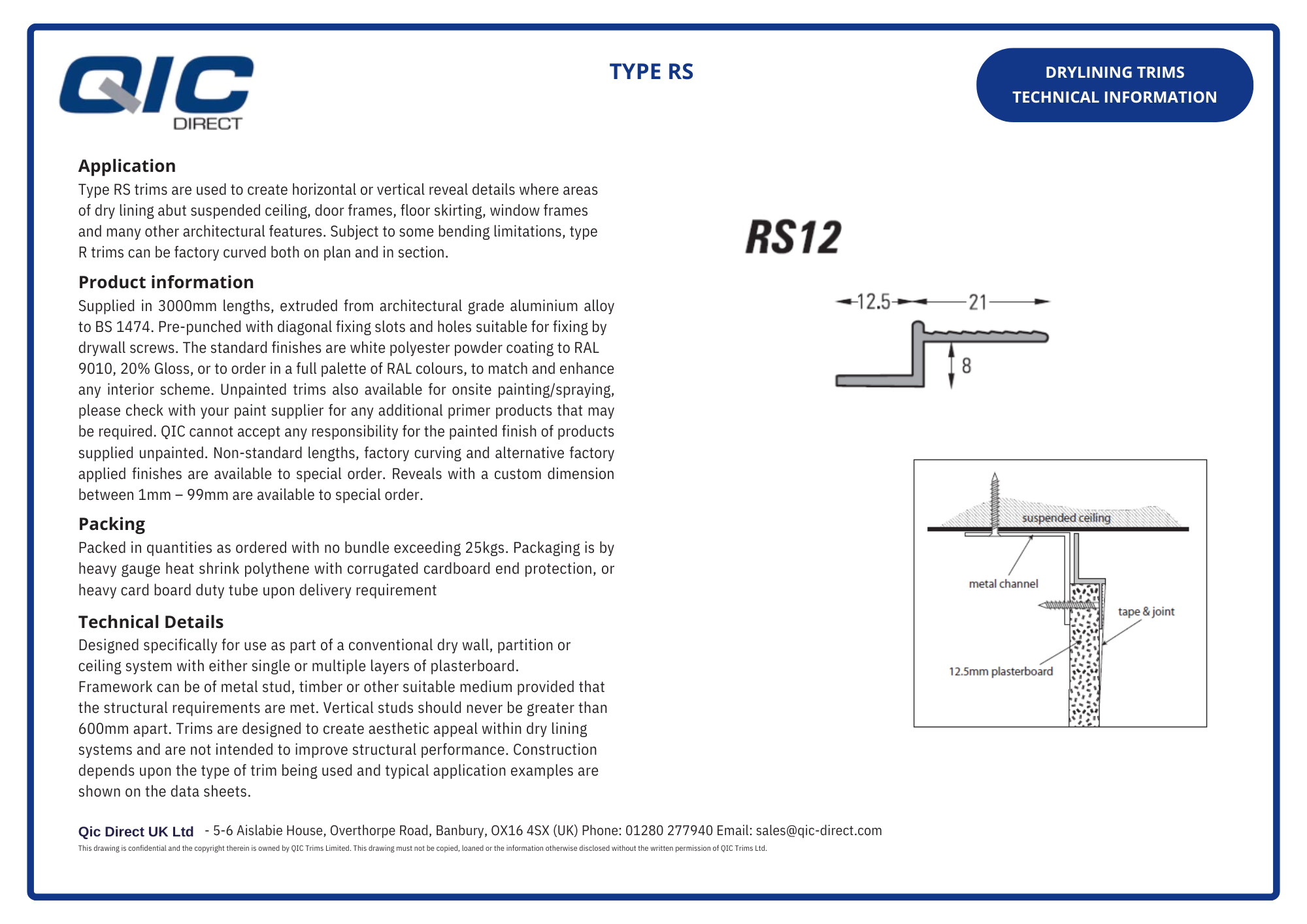

Drawings are in the Data Sheet tab next to the description. If you need a dimension that is not listed, call us on 01280 277940.

How quickly will my order arrive?

For stock items we aim to deliver next working day on orders placed before 2pm (UK mainland). If an item is out of stock you will be advised of a delivery date when you order.

What's included

  • 1 x 3000mm RS12 length
  • Standard RAL 9010 finish

Buying & Installation Guide

How to fit Type RS reveal trim

1 · Check your board

RS12 is for 8mm plasterboard. For 12.5mm board use Type R; for 15mm use Type RD.

2 · Set out

Mark the reveal line where the drylining meets the ceiling, door frame, skirting or window frame.

3 · Fix the trim

Fix the trim's back leg to the framing/channel at the abutment, then fit the board so its edge sits in the trim. Fix through the pre-punched diagonal slots in the plastering fin with standard drywall screws.

4 · Finish

Tape and joint over the plastering fin, skim and decorate.

×
