Drylining Trims

Type E

SKU: E4
£5.92
£7.10 Inc VAT
RAL 9010 In stock - Same day dispatch before 2pm
Other colours may vary - check the colour name for specific lead times

About this product

  • ✓EDGE BEAD
  • ✓E4 – E100
  • ✓12.5MM PLASTERBOARD
  • ✓3.0M LENGTHS
Free UK DeliveryFree UK DeliveryOn hardware orders £200+
Money-back guaranteeMoney-back guaranteeBuy with confidence
Expert adviceExpert adviceHere to help

Key Features

  • Edge bead

    Used with 12.5mm plasterboard where an edge bead is required, on walls and ceilings.

  • Punched flange

    Punched flange down one side for easy fixing.

  • Custom & curved

    Custom formed with dimensions 1-99mm, and can be factory curved on request.

  • Architectural aluminium

    Extruded from architectural grade Aluminium 6063-T6 for a straight, durable profile.

  • RAL 9010 as standard

    Standard RAL 9010. Other colours/finishes on request.

  • 3000mm lengths

    Supplied in standard 3.0m lengths for efficient runs and less waste on site.

The Type E drylining trims are used in conjunction with 12.5mm plasterboard where a raised or recessed feature is required and can be applied to both wall and ceiling applications. This trim can be custom formed with dimensions between 1mm and 99mm, and the profile can also be factory curved on request to suit customer requirements.

  • Supplied in 3000MM lengths
  • RAL 9010 is the standard (other RAL Colours available on request)
  • Punched Flange down one side for easy fixing
  • Variety of different sizes available
  • Extruded from architectural grade aluminium alloy to BS1474

Ideal For: Drylining contractors, interior designers, and fit-out specialists working on commercial developments, residential projects, and architectural installations requiring flexible raised or recessed feature details on walls and ceilings, including custom dimensions and potential factory curving.

<table><tbody><tr><td>Product Type</td><td>Type E trim</td></tr><tr><td>Sizes</td><td>E4 / E9 / E12 / E15 / E19 / E25 / E30 / E50 / E75 / E100</td></tr><tr><td>Length</td><td>3000 mm</td></tr><tr><td>Material</td><td>Aluminium 6063-T6</td></tr><tr><td>Finish</td><td>Standard RAL 9010 - other RAL on request</td></tr><tr><td>Board</td><td>12.5 mm plasterboard</td></tr><tr><td>SKU</td><td>E4 / E9 / E12 / E15 / E19 / E25 / E30 / E50 / E75 / E100</td></tr></tbody></table>

What is this trim used for?

Used with 12.5mm plasterboard where a raised or recessed feature is required, on walls and ceilings.

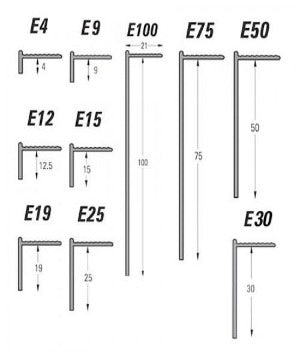

Which sizes are available?

E4, E9, E12, E15, E19, E25, E30, E50, E75, E100. See the Data Sheet tab for each profile's dimensions.

Can this trim be curved?

Yes, dependent on the radius needed. Email sales@qic-direct.com with the trim and the radius required and we will check it is possible and send a quote.

Can you make a bespoke size or profile?

Yes. We offer bespoke trims cut from sheet metal as well as other extruded lengths. Email a drawing to sales@qic-direct.com and we will send a quotation.

Can I get a different colour?

Yes. Other RAL colours and finishes are available on request. Email sales@qic-direct.com with the colour you need and we will confirm price and lead time.

Where can I find the full dimensions?

Drawings are in the Data Sheet tab next to the description. If you need a dimension that is not listed, call us on 01280 277940.

How quickly will my order arrive?

For stock items we aim to deliver next working day on orders placed before 2pm (UK mainland). If an item is out of stock you will be advised of a delivery date when you order.

What's included

  • 1 x 3000mm length (chosen size)
  • Standard RAL 9010 finish

Downloads

Buying & Installation Guide

How to fit Type E edge trim

1 · Choose your size

E4 to E100 - pick the size to match the depth of the board edge or the raised/recessed feature.

2 · Set out

Mark where the plasterboard run stops or where the feature edge will be.

3 · Fix

Slot the board edge into the trim so the punched flange laps the board face, and fix through the pre-punched diagonal slots in the plastering fin with standard drywall screws into the framing.

4 · Finish

Tape and joint over the plastering fin, skim and decorate. Factory-curved and column-ring versions available to order.
×
