Top Patch for Glass Door (Large Covers) - Matte Black

£33.99
SKU: HW00086

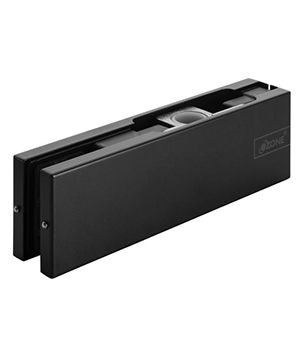

Top Patch Glass Door Large Covers "Matte Black"

  • Large Covers on this Patch to Match a Hydraulic Patch at the bottom of the Door
  • Adjustable Pivot Points 55/65 mm
  • Covers Quick Release
  • Base Material Casting: Aluminium Alloy
  • Finish: Black Matte
  • Max Door Weight Capacity 100 KG

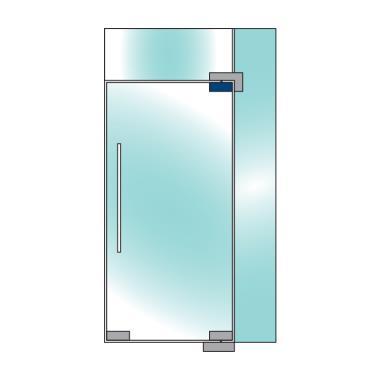

  • Used at the top of glass door leafs, compatible with top free swing pivot,
  • This patch fitting is used when matching the height dimensions of the top patch fitting to the hydraulic bottom patch dimensions, this patch fitting does not match over connector dimension
  • Dimensions: L=186 mm H=68 mm W=36 mm
  • Color : Stainless Steel Brushed
  • Door Type: Glass Door
