Top Patch For Glass Door - Matte Black

SKU: HW00097
£19.99
£23.99 Inc VAT
In stock - Same day dispatch before 2pm

About this product

  • ✓TOP PATCH
  • ✓PT20 STYLE
  • ✓100KG DOOR
  • ✓MATTE BLACK
Free UK DeliveryFree UK DeliveryOn hardware orders £200+
Money-back guaranteeMoney-back guaranteeBuy with confidence
Expert adviceExpert adviceHere to help

Key Features

  • Top of door

    Used at the top of a frameless glass door leaf (DORMA PT20 style).

  • Adjustable pivot

    Adjustable pivot points 55/65mm.

  • Quick release covers

    Quick release covers for easy fitting.

  • 100kg capacity

    Max door weight capacity 100kg.

  • Quality glass gaskets

    Good quality glass gaskets included.

  • Matte black

    SSS 304 covers, matte black finish.

Top Patch Glass Door Stainless "Matte Black"

  • Used At The Top Of A Glass Door Leaf ( DORMA PT20 Style )
  • Adjustable Pivot Points 55/65 mm
  • Covers Quick Release
  • Base Material Casting: Aluminium Alloy
  • Finish: SSS 304
  • Max Door Weight Capacity 100 KG
  • Good Quality Glass Gaskets
  • Dimensions: L=162 mm H=51 mm W=30 mm
  • Color: Matte Black
  • Door Type: Glass Door
WWW.QIC-IRONMONGERY.CO.UK

    <table><tbody><tr><td>Product Type</td><td>Top patch (PT20 style)</td></tr><tr><td>Dimensions</td><td>L 162 x H 51 x W 30 mm</td></tr><tr><td>Pivot Points</td><td>55 / 65 mm</td></tr><tr><td>Max Door Weight</td><td>100 kg</td></tr><tr><td>Body</td><td>Aluminium alloy casting</td></tr><tr><td>Covers</td><td>SSS 304</td></tr><tr><td>Finish</td><td>Matte black</td></tr><tr><td>Model</td><td>OZONE OPF-2</td></tr><tr><td>SKU</td><td>HW00097</td></tr></tbody></table>

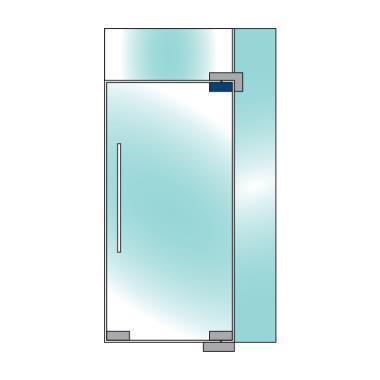

    Where does it go?

    At the top pivot corner of a frameless glass door (DORMA PT20 style), connecting to a top pivot plate or corner connector.

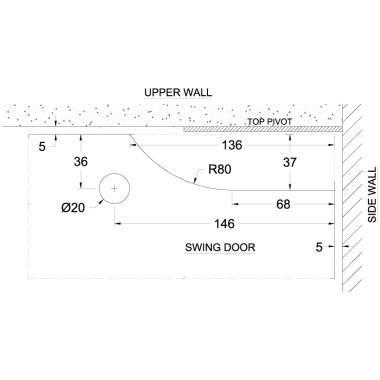

    What glass cut-out does it need?

    See glass cut out details.

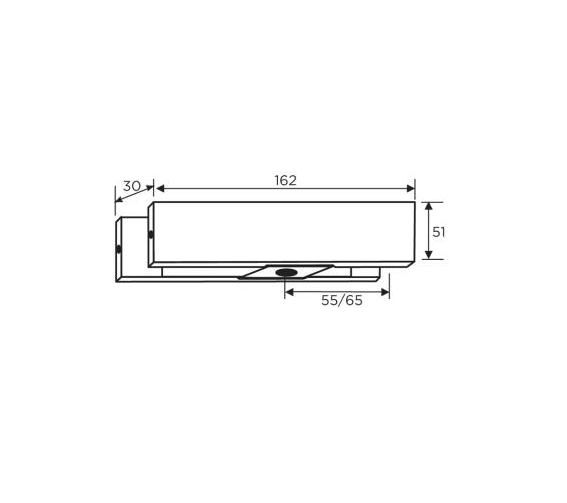

    What size is it?

    L 162 x H 51 x W 30mm, with adjustable pivot points of 55 or 65mm.

    What does it connect to?

    A top pivot plate fixed to the soffit/channel, or a top corner connector where there are over and side panels. Max door weight 100kg.

    How quickly will my order arrive?

    For stock items we aim to deliver next working day on orders placed before 2pm (UK mainland). If an item is out of stock you will be advised of a delivery date when you order.

    What's included

    • 1 x top patch fitting
    • Glass gaskets

    Downloads

    Buying & Installation Guide

    How to fit your top patch

    1 · Order the glass cut-outs

    See glass cut out details.

    2 · Fit to the glass

    Remove the quick-release covers, place the gaskets either side of the glass and clamp the patch to the corner.

    3 · Set the pivot point

    Set the pivot at 55mm or 65mm to match your bottom pivot/floor spring.

    4 · Hang & cover

    Locate onto the 15mm top pivot pin, check the door is plumb, then clip the covers on.
    ×
