Patch Fittings

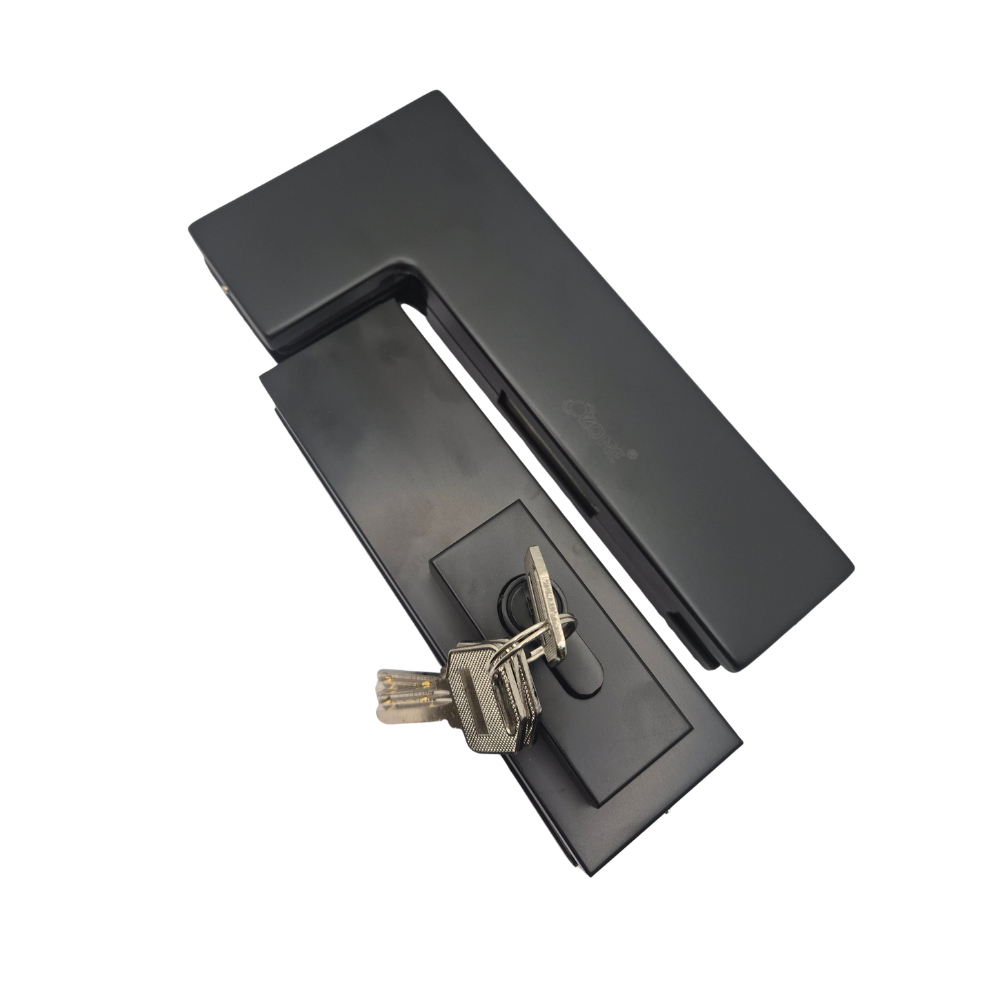

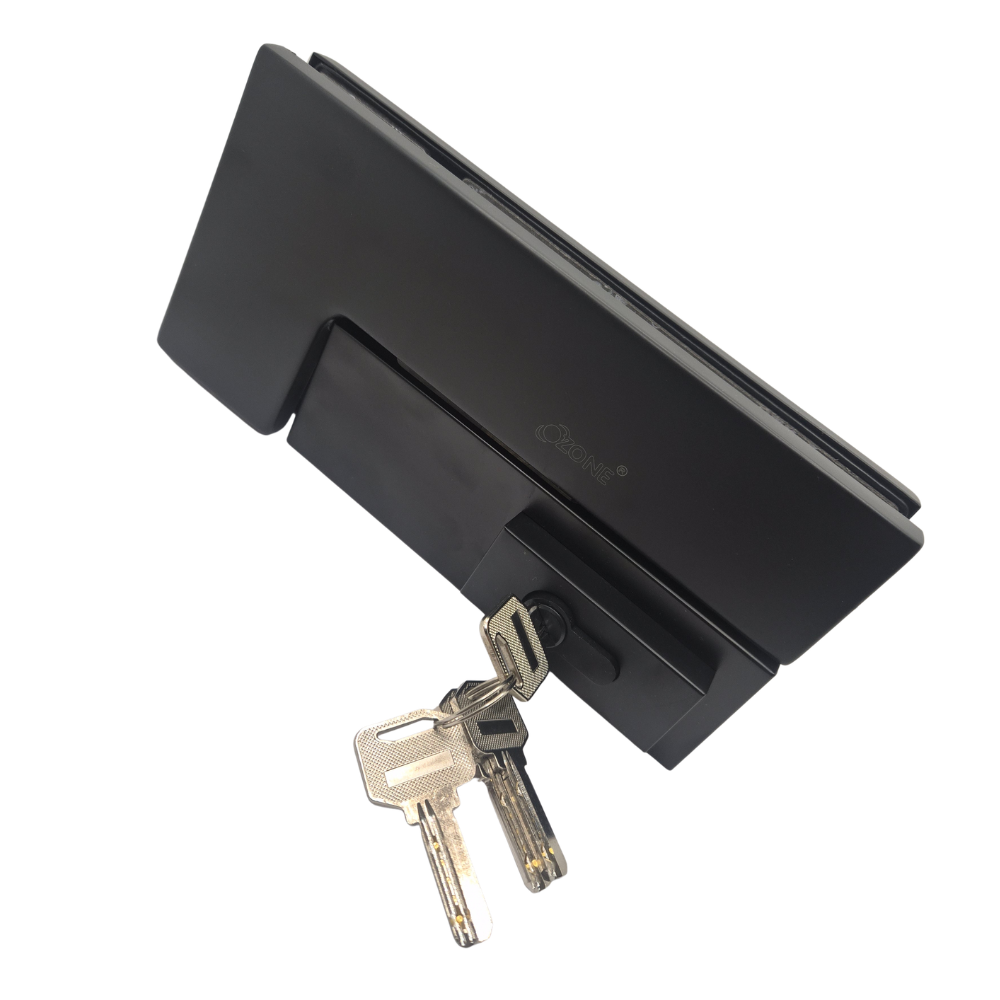

Top Corner Lock Set For Glass Door - Matte Black

SKU: HW00078 / HW00083
£54.99
£65.99 Inc VAT
In stock - Same day dispatch before 2pm

About this product

  • ✓TOP CORNER LOCK SET
  • ✓GK40 + US10 STYLE
  • ✓100KG DOOR
  • ✓MATTE BLACK
Free UK DeliveryFree UK DeliveryOn hardware orders £200+
Money-back guaranteeMoney-back guaranteeBuy with confidence
Expert adviceExpert adviceHere to help

Key Features

  • Complete top lock set

    Over panel strike connector plus top lock patch to lock the door leaf at the top.

  • 15mm pivot pin

    Connector has a 15mm pivot pin and adjustable 55/65mm pivot point.

  • Deadbolt lock

    Single throw deadbolt with euro cylinder and 3 computer cut keys.

  • Floor strike included

    Lock supplied with floor strike plate, so it can lock to the floor instead.

  • Matte Black

    Available in matte black.

  • Next day delivery

    Order stock items before 2pm for same-day despatch and next working day delivery.

Glass Door Over Connector Patch & Lock Set

  • GK40 ( DORMA STYLE )
  • Pivot Pin Connector 15 mm Diameter
  • Adjustable Pivot Point 55/65 mm
  • Covers Quick Release
  • Finish: Matte Black
  • This Top Glass Over Panel & L Strike Fitting Is Used With Over & Side Panels When A Top Lock Is Required On Top Of The Door Leaf

............................................................................................................................

Top Glass Door Lock Patch Fitting

  • US10 ( DORMA STYLE )
  • Dead Bolt Projection (Single Throw)
  • Covers SSS 304 Quick Release Style
  • Max Door Weight Capacity 100 KG ( Call For Advice )
  • Supplied With Euro Cylinder, x 3 High Security Computer Cut Keys & Floor Strike Plate
  • Used To Lock The Glass Door Leaf To The floor Or Top Of The Glass Leaf When Used With A Over Panel Strike Patch
  • Dimensions: L=162 mm H=51 mm W=30 mm
  • Color: Matte Black
  • Door Type: Glass Door




    <table><tbody><tr><td>Product Type</td><td>Top corner lock set</td></tr><tr><td>Styles</td><td>GK40 + US10 (DORMA style)</td></tr><tr><td>Lock Dimensions</td><td>L 161 x H 50 x W 30 mm</td></tr><tr><td>Max Door Weight</td><td>100 kg</td></tr><tr><td>Finishes</td><td>Matte black</td></tr><tr><td>Model</td><td>OZONE OPL-1 &amp; OPF-1B</td></tr><tr><td>SKU</td><td>HW00078 / HW00086 (black)</td></tr></tbody></table>

    What's in the set?

    A top corner strike connector (GK40 style) and a lock patch (US10 style) with euro cylinder, 3 keys and floor strike plate.

    What glass cut-outs does it need?

    See glass cut out details.

    Can it lock to the floor instead?

    Yes - the floor strike plate is included so the lock patch can be used at the bottom of the door.

    How quickly will my order arrive?

    For stock items we aim to deliver next working day on orders placed before 2pm (UK mainland). If an item is out of stock you will be advised of a delivery date when you order.

    What's included

    • 1 x top corner strike connector
    • 1 x lock patch
    • 1 x euro cylinder
    • 3 x computer cut keys
    • 1 x floor strike plate

    Downloads

    Buying & Installation Guide

    How to fit the top corner lock set

    1 · Order the glass cut-outs

    See glass cut out details.

    2 · Fit the strike connector

    Clamp it across the over and side panels.

    3 · Fit the lock patch

    Clamp it to the top lock-side corner of the door.

    4 · Hang & test

    Hang the door, fit covers and test the lock.
    ×
