Stainless Top & Bottom Glass Door Off Set Pivot Hinge Set

SKU: HW00023/HW00038/HW00006
£79.99 £99.99
£95.99 Inc VAT
In stock - Same day dispatch before 2pm

About this product

  • ✓OFFSET PIVOT HINGE SET
  • ✓LEFT OR RIGHT HAND
  • ✓10–12MM GLASS
  • ✓UP TO 100KG
Free UK DeliveryFree UK DeliveryOn hardware orders £200+
Money-back guaranteeMoney-back guaranteeBuy with confidence
Expert adviceExpert adviceHere to help

Key Features

  • Complete set

    Top pivot plate, top hinge and bottom hinge.

  • 10-12mm glass

    To suit 10-12mm glass door sets.

  • Up to 100kg

    Max door weight 100kg, max width 1000mm.

  • Single or double doors

    Suitable for single or double door sets.

  • Brushed stainless

    SSS 304 brushed finish.

  • Next day delivery

    Order stock items before 2pm for same-day despatch and next working day delivery.

Stainless Top & Bottom Off Set Pivot Hinge Fitting Set
  • Set Consists Of Top Pivot Plate / Top Hinge / Bottom Hinge
  • To suit 10mm - 12mm glass doorsets
  • Maximum Door Weight: 100 kg
  • Maximum Door Width: 1000 mm
  • Suitable For Single or Double Doors Sets
  • Color : Stainless Steel Brushed
  • Door Type : Glass Door
  • Finish SSS 304

Floor Pivot Optional

https://www.qic-ironmongery.co.uk/collections/qic-ironmongery-for-glass-doors-partitions/products/free-swing-glass-door-floor-pivot-hinge-stainless?_pos=4&_sid=1117f9509&_ss=r

Floor spring Optional

https://www.qic-ironmongery.co.uk/search?type=product&q=floor+springs



      <table><tbody><tr><td>Product Type</td><td>Offset pivot hinge set</td></tr><tr><td>Contents</td><td>Top pivot plate + top hinge + bottom hinge</td></tr><tr><td>Glass Thickness</td><td>10 - 12 mm</td></tr><tr><td>Max Door Weight</td><td>100 kg</td></tr><tr><td>Max Door Width</td><td>1000 mm</td></tr><tr><td>Finish</td><td>SSS 304 brushed</td></tr><tr><td>SKU</td><td>HW00023/HW00038/HW00006 (LH), HW00024/HW00037/HW00007 (RH)</td></tr></tbody></table>

      What's in the set?

      Top pivot plate, top offset hinge and bottom offset hinge (no floor hinge).

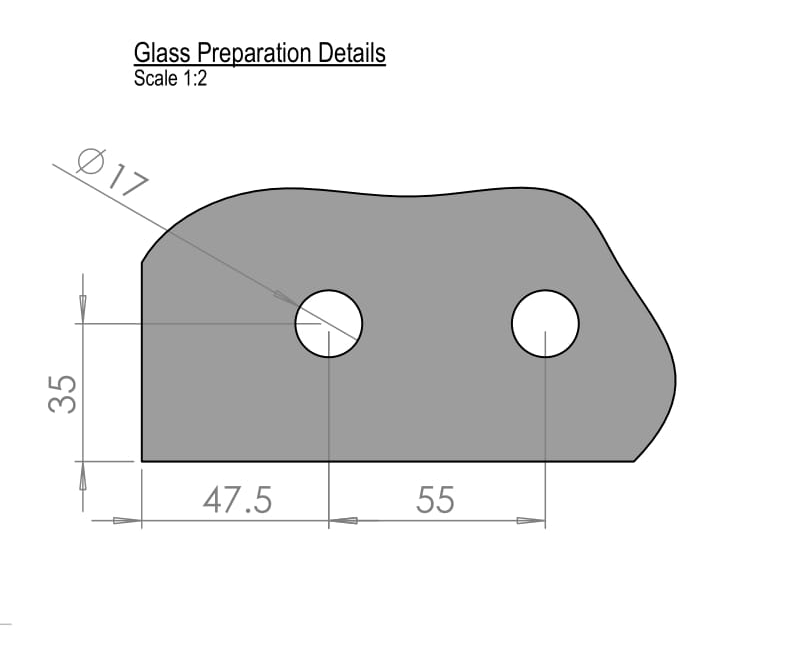

      What glass cut-out does it need?

      See glass cut out details.

      Do I need a floor pivot?

      Yes - add a free-swing floor pivot, or a floor spring for self-closing (sold separately).

      What size door?

      10-12mm glass, up to 100kg. Single or double door sets.

      How quickly will my order arrive?

      For stock items we aim to deliver next working day on orders placed before 2pm (UK mainland). If an item is out of stock you will be advised of a delivery date when you order.

      What's included

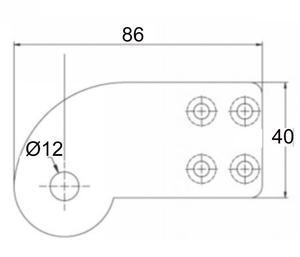

      • 1 x top pivot plate

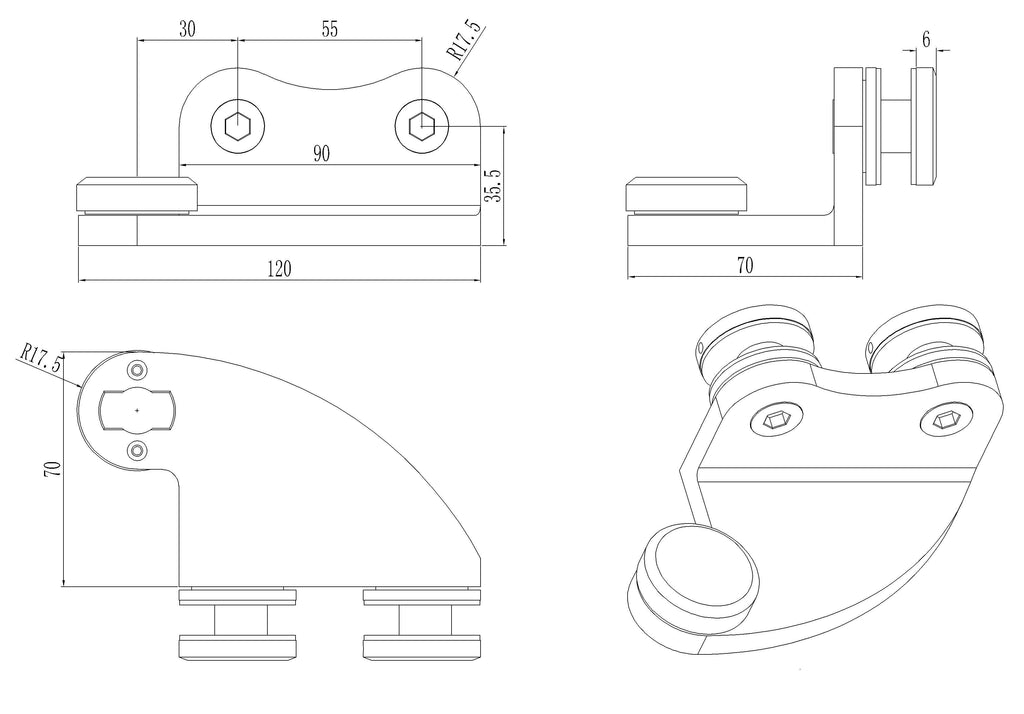

      • 1 x top offset hinge

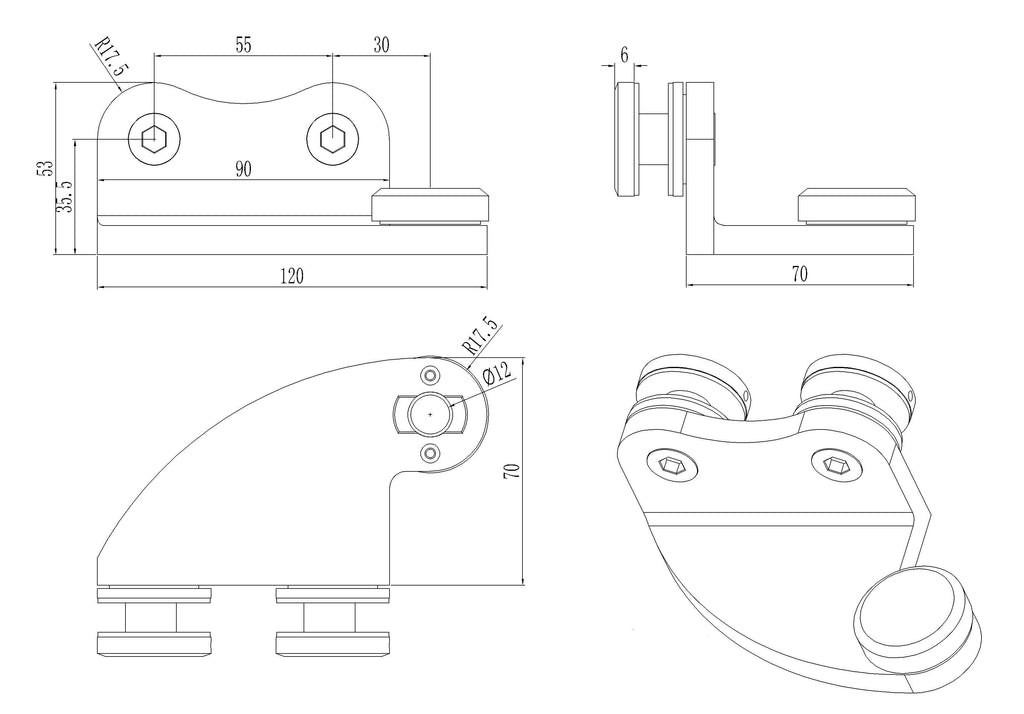

      • 1 x bottom offset hinge

      Downloads

      Buying & Installation Guide

      How to fit the offset pivot hinge set

      1 · Choose the hand

      Left or right hand set.

      2 · Fix floor pivot/spring

      Fix the floor pivot or floor spring, then plumb up and fix the top pivot plate.

      3 · Order the glass cut-outs

      See glass cut out details.

      4 · Clamp & hang

      Clamp both hinges to the glass and hang the door.
      ×
