Patch Fittings

Patch Fitting Set For Glass Door - Stainless

SKU: HW00039 / HW00040 / HW00017 / HW00008
£34.99
£41.99 Inc VAT
In stock - Same day dispatch before 2pm

About this product

  • ✓PATCH FITTING SET
  • ✓PT10 / PT20 / PT24
  • ✓100KG DOOR
  • ✓BRUSHED STAINLESS
Free UK DeliveryFree UK DeliveryOn hardware orders £200+
Money-back guaranteeMoney-back guaranteeBuy with confidence
Expert adviceExpert adviceHere to help

Key Features

  • Complete set

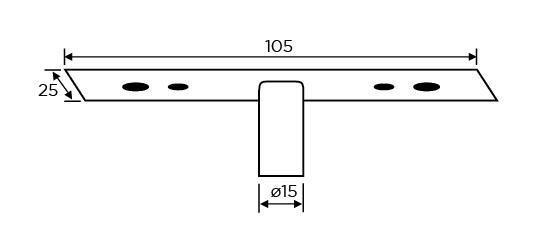

    Top pivot plate + Top patch + Bottom patch + Free swing floor pivot.

  • Free swinging door

    Creates a free swinging glass door - no hydraulic patch included.

  • Adjustable pivot

    Adjustable pivot points 55-65mm.

  • Quick release covers

    Quick release cover plates.

  • 100kg capacity

    Max glass door weight 100kg.

  • Brushed stainless

    SSS 304, brushed stainless finish.

Stainless Brushed Glass Door Patch Fitting Set

  • Top Pivot Plate / Top Patch /  Bottom / Patch / Floor Hinge
  • No Hydraulic patch included. Used to create a Free swinging glass door.
  • Adjustable Pivot Points 55 mm to 65 mm
  • Quick Release Cover Plates
  • Finish: SSS 304
  • Max Glass Door Weight Capacity 100 Kgs
  • (DORMA PT10 / PT20 / PT24 Style)
  • Color: Stainless Steel Brushed
  • Door Type: Glass Door
    WWW.QIC-IRONMONGERY.CO.UK

<table><tbody><tr><td>Product Type</td><td>Glass door patch fitting set</td></tr><tr><td>Contents</td><td>Top pivot plate + Top patch + Bottom patch + Free swing floor pivot</td></tr><tr><td>Pivot Points</td><td>55 - 65 mm</td></tr><tr><td>Max Door Weight</td><td>100 kg</td></tr><tr><td>Finish</td><td>Brushed stainless</td></tr><tr><td>Style</td><td>DORMA PT10 / PT20 / PT24</td></tr><tr><td>SKU</td><td>HW00039 / HW00040 / HW00017 / HW00008</td></tr></tbody></table>

What's in the set?

Top pivot plate, top patch and bottom patch plus a free-swing floor pivot.

Will the door self-close?

No - this set makes a free-swinging door. For self-closing choose a hydraulic patch set or add a floor spring.

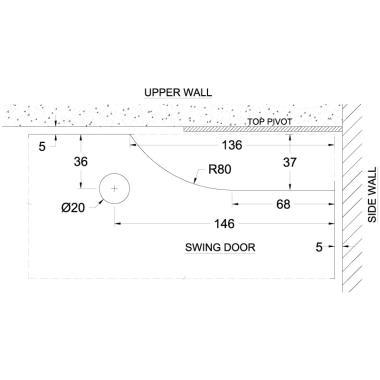

What glass cut-outs does it need?

See glass cut out details.

What weight door?

Up to 100kg, 55-65mm pivot points (DORMA PT10/PT20/PT24 style).

How quickly will my order arrive?

For stock items we aim to deliver next working day on orders placed before 2pm (UK mainland). If an item is out of stock you will be advised of a delivery date when you order.

What's included

  • 1 x top pivot plate
  • 1 x top patch
  • 1 x bottom patch
  • 1 x free swing floor pivot

Downloads

Buying & Installation Guide

How to fit your patch fitting set

1 · Set out the pivots

Mark the pivot centre on the floor and plumb up to the soffit.

2 · Fix the pivots

Fix the top pivot plate and the floor pivot.

3 · Order the glass cut-outs

See glass cut out details.

4 · Fit the patches

Clamp the top and bottom patches to the door with gaskets.

5 · Hang

Lower onto the bottom pivot, locate the top pin, check plumb and gaps, then clip the covers on.
×
