Off-Set Pivot Hinges

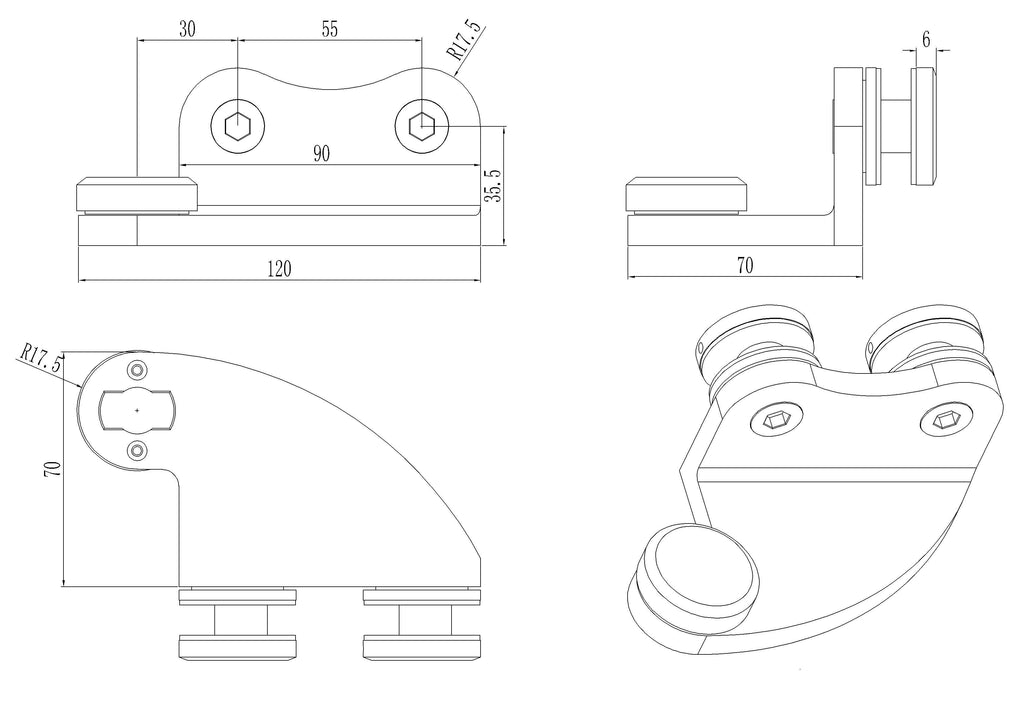

Offset Pivot Hinge For Glass Door (Bottom Left) - Stainless

SKU: HW00006
£49.99
£59.99 Inc VAT
In stock - Same day dispatch before 2pm

About this product

  • ✓OFFSET PIVOT HINGE
  • ✓BOTTOM LEFT
  • ✓10–12MM GLASS
  • ✓UP TO 100KG
Free UK DeliveryFree UK DeliveryOn hardware orders £200+
Money-back guaranteeMoney-back guaranteeBuy with confidence
Expert adviceExpert adviceHere to help

Key Features

  • Framed or frameless

    Ideal for framed or frameless applications.

  • 10-12mm glass

    To suit 10-12mm glass doors.

  • Up to 100kg

    Max door weight 100kg, max width 1100mm.

  • Single or twin doors

    Suitable for single or twin doors.

  • Brushed stainless

    Brushed SSS 304 finish.

  • Next day delivery

    Order stock items before 2pm for same-day despatch and next working day delivery.

Stainless Off Set Glass Door Bottom Pivot Hinge
  • Ideal For Use In Framed Or Frame-less applications
  • To Suit 10 mm - 12 mm Glass Doors
  • Maximum Door Weight: 100 kg
  • Maximum Door Width: 1100 mm
  • Suitable For Single Or Twin  Doors
  • Finish Brushed SSS 304
  • Color: Stainless Steel
  • Door Type: Glass Door

Optional Items Below



WWW.QIC-IRONMONGERY.COM

    <table><tbody><tr><td>Product Type</td><td>Offset pivot hinge - bottom left</td></tr><tr><td>Glass Thickness</td><td>10 - 12 mm</td></tr><tr><td>Max Door Weight</td><td>100 kg</td></tr><tr><td>Max Door Width</td><td>1100 mm</td></tr><tr><td>Finish</td><td>Brushed SSS 304</td></tr><tr><td>SKU</td><td>HW00006</td></tr></tbody></table>

    Which hand do I need?

    This is the bottom left hinge. Order top and bottom hinges of the same hand.

    What glass cut-out does it need?

    See glass cut out details.

    What size door?

    10-12mm glass, up to 100kg and 1100mm wide. Single or twin doors, framed or frameless.

    What does the bottom hinge sit on?

    A free-swing floor pivot or a floor spring.

    How quickly will my order arrive?

    For stock items we aim to deliver next working day on orders placed before 2pm (UK mainland). If an item is out of stock you will be advised of a delivery date when you order.

    What's included

    • 1 x offset pivot hinge (bottom left)

    Downloads

    Buying & Installation Guide

    How to fit your offset pivot hinge

    1 · Choose the hand

    Match top and bottom hinges (left or right).

    2 · Order the glass cut-outs

    See glass cut out details.

    3 · Fix the pivot

    Fix the floor pivot/floor spring (bottom) or offset hinge plate (top), plumb with each other.

    4 · Clamp & hang

    Clamp the hinge to the glass with the gaskets and hang the door on the pivots.
    ×
