Hydraulic Patch Fittings

Hydraulic Patch For Glass Door - Matte Black

SKU: HW00081
£99.99
£119.99 Inc VAT
In stock - Same day dispatch before 2pm

About this product

  • ✓EN 1154
  • ✓NO FLOOR DIGGING
  • ✓UP TO 60-100KG
  • ✓MATTE BLACK
Free UK DeliveryFree UK DeliveryOn hardware orders £200+
Money-back guaranteeMoney-back guaranteeBuy with confidence
Expert adviceExpert adviceHere to help

Key Features

  • No floor digging

    Self-closing bottom patch - no digging or cutting of the floor required.

  • EN 1154 compliant

    Tested to 500,000 opening cycles.

  • Dual swing

    Max opening 150°, controlled to 135°, with two speed adjustments (closing & braking).

  • Easy alignment

    Fitting alignment adjustment +3mm in four directions.

  • Hold open options

    Choose hold open or non hold open.

  • 5 year warranty

    5 year hydraulic warranty.

Hydraulic Patch Self Closing

  • Bottom Self Closing Hydraulic Patch Fitting
  • EN 1154 Compliant
  • Maximum Door Load Weight 60-100 kg
  • Maximum Door Width 1000 mm
  • Glass Thickness 10 to 12 mm
  • Maximum Door Opening 150° & Controlled to 135°
  • Dual Swing Action, Two Speed Adjustments Closing & Braking
  • Opening Cycle Tested to 500,000
  • Fitting Alignment Adjustment +3 mm In Four Directions
  • No Digging or Cutting of Floor Required For Quick and Easy Installation
  • Material SSS 304 Standard Quick Release Cover Plate Fasteners
  • 5 YEAR HYDRAULIC WARRANTY
  • Color: Stainless Steel Brushed
  • Hold Open & Non Hold Options Available
  • Color: Stainless Matte Black
  • Door Type: Glass Door
WWW.QIC-IRONMONGERY.CO.UK



<table><tbody><tr><td>Product Type</td><td>Hydraulic patch</td></tr><tr><td>Standard</td><td>EN 1154</td></tr><tr><td>Max Door Weight</td><td>60 - 100 kg</td></tr><tr><td>Door Width</td><td>max 1000 mm</td></tr><tr><td>Glass Thickness</td><td>10 - 12 mm</td></tr><tr><td>Opening</td><td>150° max, controlled to 135°</td></tr><tr><td>Cycles</td><td>500,000</td></tr><tr><td>Hold Open</td><td>Hold open / non hold open</td></tr><tr><td>Material</td><td>SSS 304</td></tr><tr><td>Finish</td><td>Matte black</td></tr><tr><td>Warranty</td><td>5 years hydraulic</td></tr><tr><td>SKU</td><td>HW00081 (hold open) / HW00155 (non hold open)</td></tr></tbody></table>

Do I need to dig up the floor?

No - the closer is inside the bottom patch, so there's no floor spring to bury. Only a small floor plate (110 x 48 x 9mm) is screwed to the floor.

What size door?

60-100kg, max 1000mm wide. 10-12mm glass.

Hold open or non hold open?

Hold open stops the door open at its set angle; non hold open always closes. Choose at checkout.

How far does it open?

Up to 150°, controlled to 135°. Double action with separate closing and braking speed adjustment.

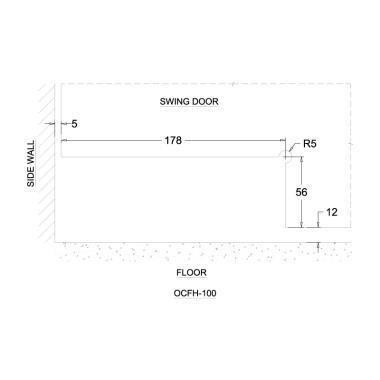

What glass cut-out does it need?

See glass cut out details.

Is there a warranty?

5 year hydraulic warranty. EN 1154 compliant, tested to 500,000 cycles.

How quickly will my order arrive?

For stock items we aim to deliver next working day on orders placed before 2pm (UK mainland). If an item is out of stock you will be advised of a delivery date when you order.

What's included

  • 1 x hydraulic bottom patch

Downloads

Buying & Installation Guide

How to fit your hydraulic patch

1 · Check the door

60-100kg, up to 1000mm wide, 10-12mm glass.

2 · Order the glass cut-outs

See glass cut out details.

3 · Fix the floor plate & top pivot

Screw the floor plate to the floor directly below the top pivot plate.

4 · Fit the patch

Clamp the hydraulic patch to the door with gaskets.

5 · Hang & adjust

Hang the door, use the +3mm adjustment to align, then set closing and braking speed.

6 · Watch the video

Installation video: https://www.youtube.com/watch?v=CFw1Mu-aeMU
×
