BILOBA 8060 - Hydraulic Hinge For Glass Door

SKU: HW00158
£129.99 £149.99
£155.99 Inc VAT
In stock - Same day dispatch before 2pm

About this product

  • ✓HYDRAULIC HINGE
  • ✓GLASS TO WALL / FRAME
  • ✓UP TO 100KG
  • ✓BRUSHED STAINLESS
Free UK DeliveryFree UK DeliveryOn hardware orders £200+
Money-back guaranteeMoney-back guaranteeBuy with confidence
Expert adviceExpert adviceHere to help

Key Features

  • Automatic closing

    Automatic hydraulic hinge with adjustable closing speed.

  • Stops 0° / ±90°

    Stops at 0°, +90° and -90°.

  • Up to 100kg

    Max door weight 100kg and width 1000mm using 2 hinges.

  • 10-12mm glass

    Glass thickness 10-12mm.

  • Glass to wall 90°

    Glass to wall or frame mounting.

  • Single action

    Opens in one direction only.

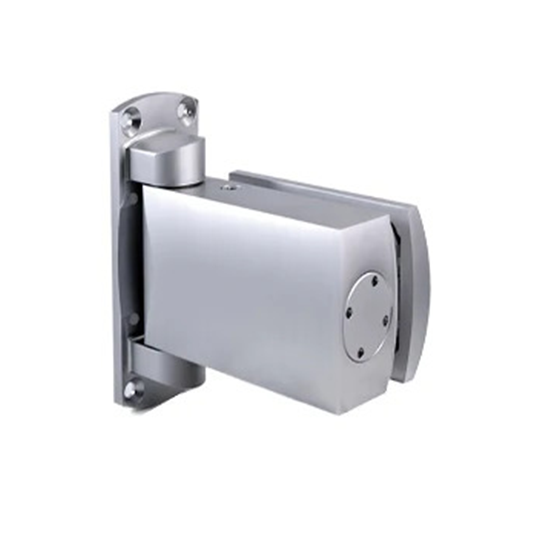

BILOBA 8060 Hydraulic Side Hung Glass Door Hinge

  • Glass To Wall or Frame Hinge
  • Automatic Hydraulic Hinge With Adjustable Closing Speed
  • Stops At 0° +90° -90°
  • Maximum door weight using 2 hinges 100 kg.
  • Maximum door width using 2 hinges 1000 mm.
  • Mounting: Glass to wall 90°
  • Glass Door: Single Action - Opens In One Direction Only
  • Glass thickness: 8 - 12 mm
  • Finish : Brushed Stainless Steel
  • Unsuitable to be used in external/uncovered/exposed to the outside elements

    <table><tbody><tr><td>Product Type</td><td>BILOBA 8060 hydraulic side hung hinge</td></tr><tr><td>Mounting</td><td>Glass to wall / frame 90°</td></tr><tr><td>Stops</td><td>0°, +90°, -90°</td></tr><tr><td>Glass Thickness</td><td>10 - 12 mm</td></tr><tr><td>Max Door Weight</td><td>100 kg (2 hinges)</td></tr><tr><td>Max Door Width</td><td>1000 mm (2 hinges)</td></tr><tr><td>Finish</td><td>Brushed stainless</td></tr><tr><td>Brand</td><td>COLCOM</td></tr><tr><td>Use</td><td>Internal only</td></tr><tr><td>SKU</td><td>HW00158</td></tr></tbody></table>

    What does it fix to?

    A wall or frame - glass to wall at 90°. Ideal where a floor spring can't be fitted.

    Does it self-close?

    Yes - automatic hydraulic closing with adjustable speed, stopping at 0°, +90° and -90°.

    What glass and door size?

    10-12mm glass, up to 100kg and 1000mm wide using 2 hinges.

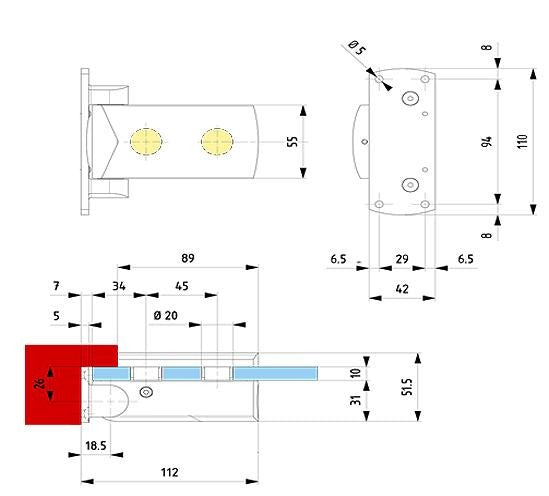

    What glass cut-out does it need?

    See glass cut out details.

    Can it be used outside?

    No - operating temperature -15°C to +40°C, internal/covered use only.

    How quickly will my order arrive?

    For stock items we aim to deliver next working day on orders placed before 2pm (UK mainland). If an item is out of stock you will be advised of a delivery date when you order.

    What's included

    • 1 x BILOBA 8060 hydraulic hinge

    Downloads

    Buying & Installation Guide

    How to fit the BILOBA 8060 hinge

    1 · Check the door

    10-12mm glass, up to 100kg and 1000mm wide with 2 hinges.

    2 · Order the glass cut-outs

    See glass cut out details.

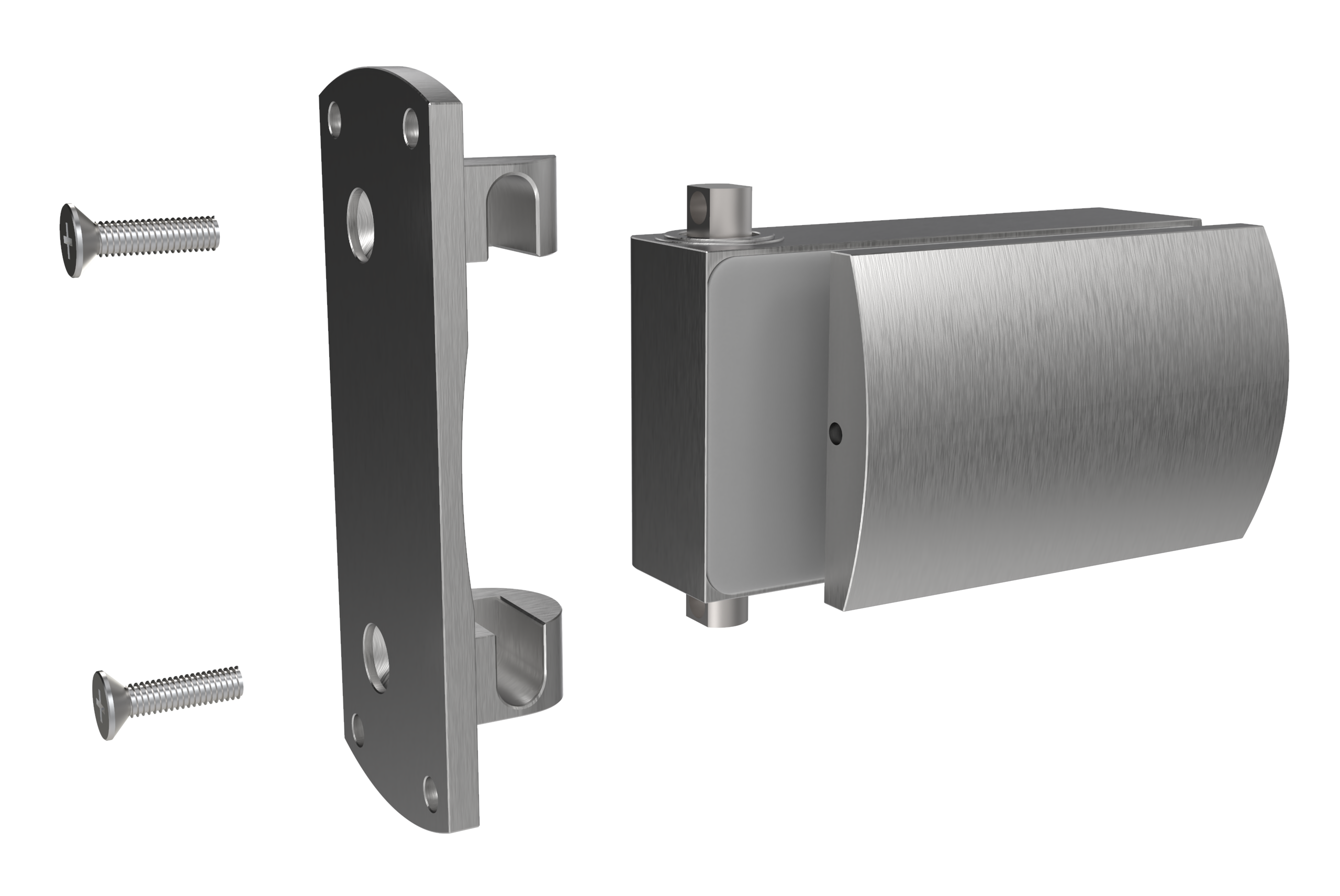

    3 · Fix the wall plate

    Fix the 110 x 42mm wall plate to the wall/frame, plumb.

    4 · Clamp the glass

    Clamp the door glass into the hinge with gaskets.

    5 · Adjust

    Set the closing speed.
    ×
