Single Glazed Door Frame - Configurable

The current lead time is 5-7 working days
Total Price £225.00

Single Glazed Door Frame - Configurable - 0 – 2150 mm (Standard) / Timber / Left Hand is backordered and will ship as soon as it is back in stock.

Free UK DeliveryFree UK DeliveryOn hardware orders £200+
Money-back guaranteeMoney-back guaranteeBuy with confidence
Expert adviceExpert adviceHere to help

Key Features

  • Made to measure

    Made to order to the specific size you need, up to 2750mm high.

  • Timber or glass doors

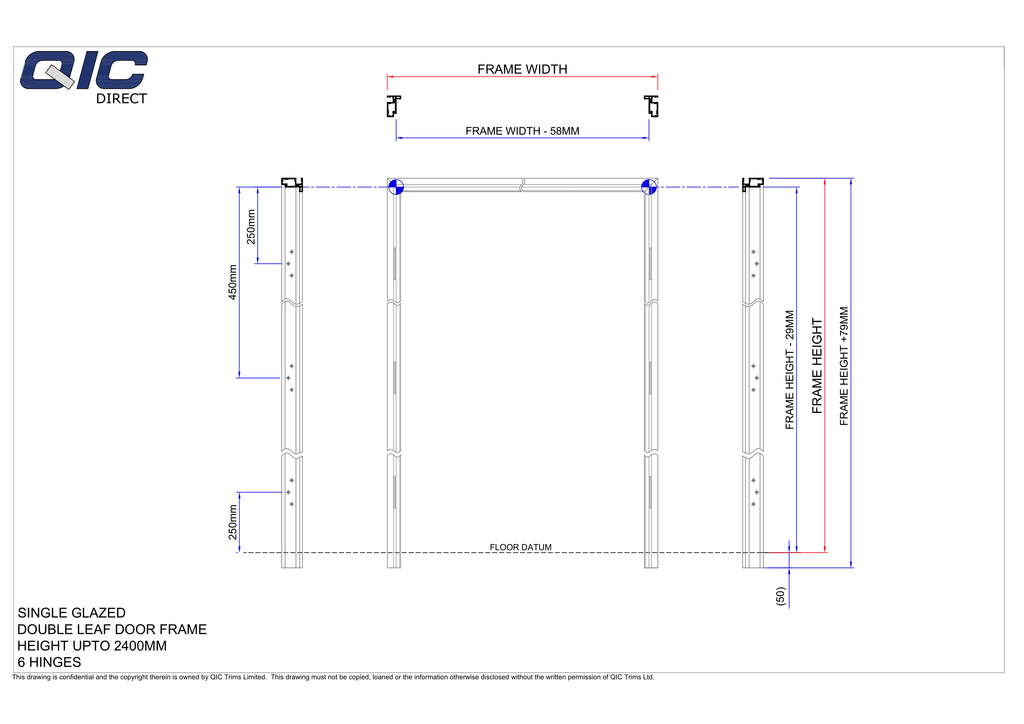

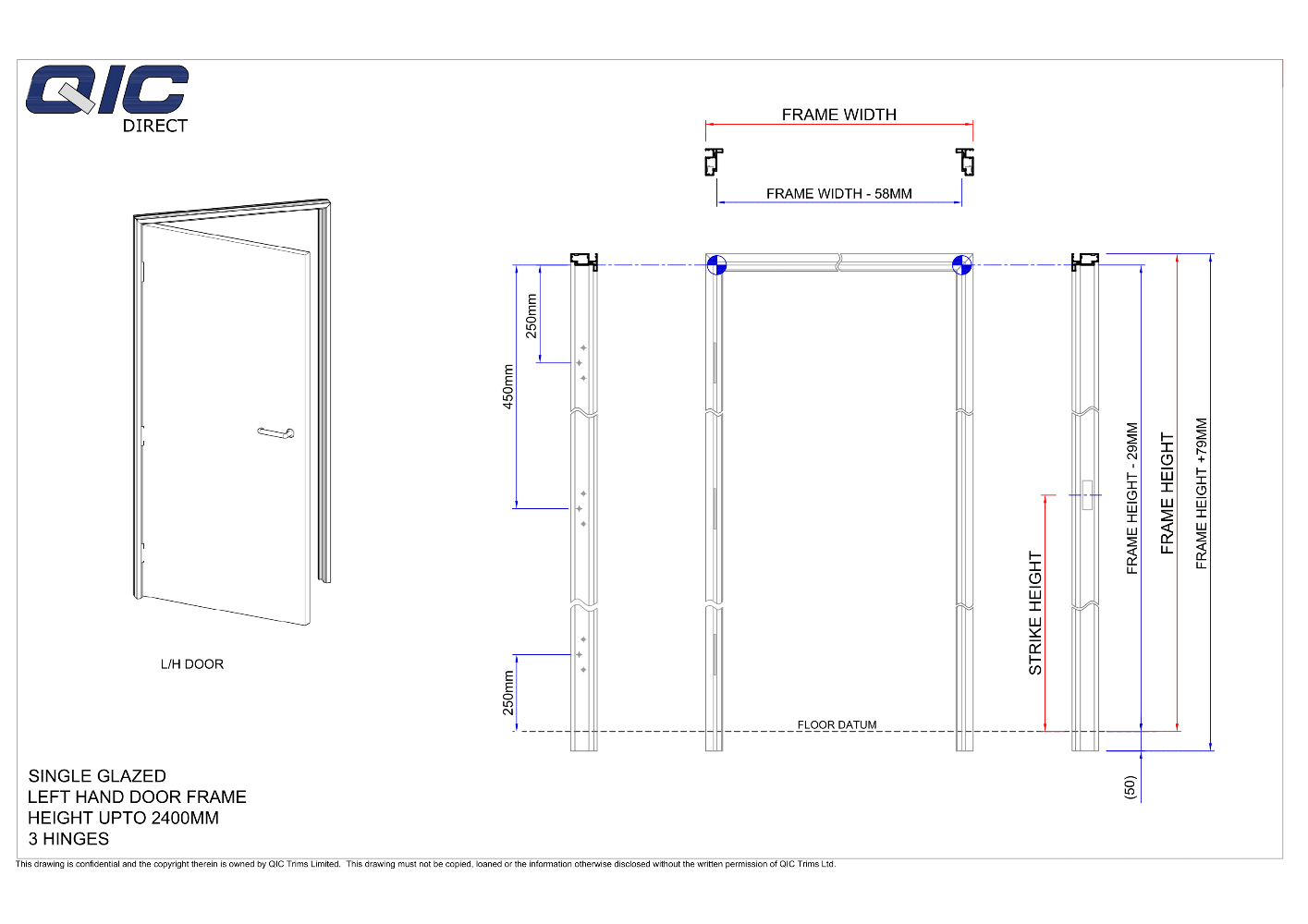

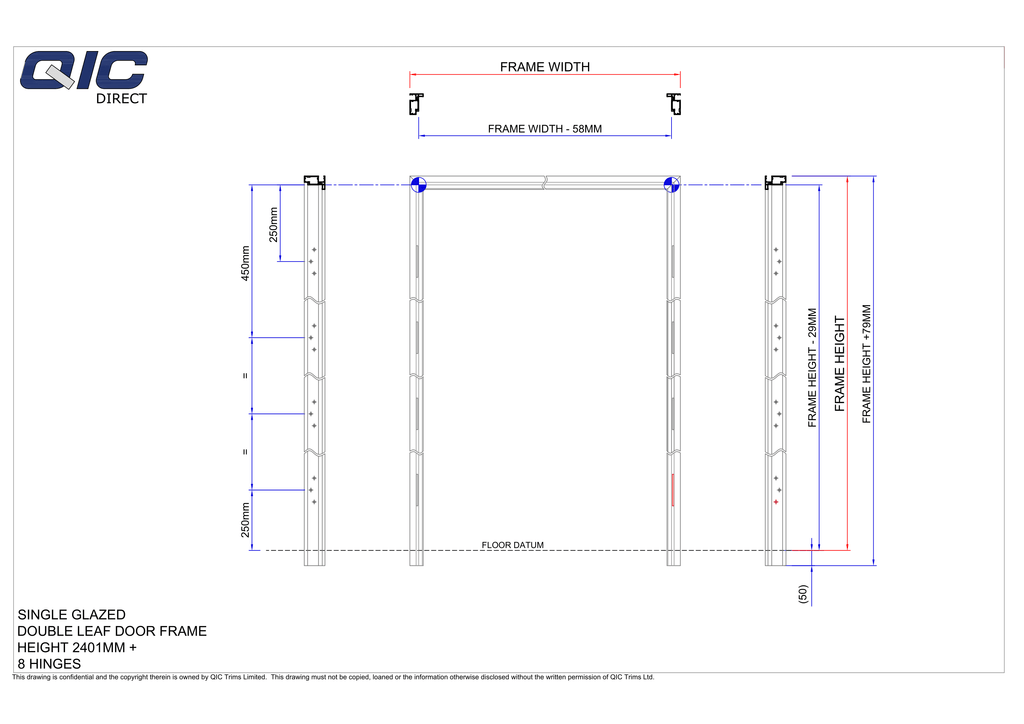

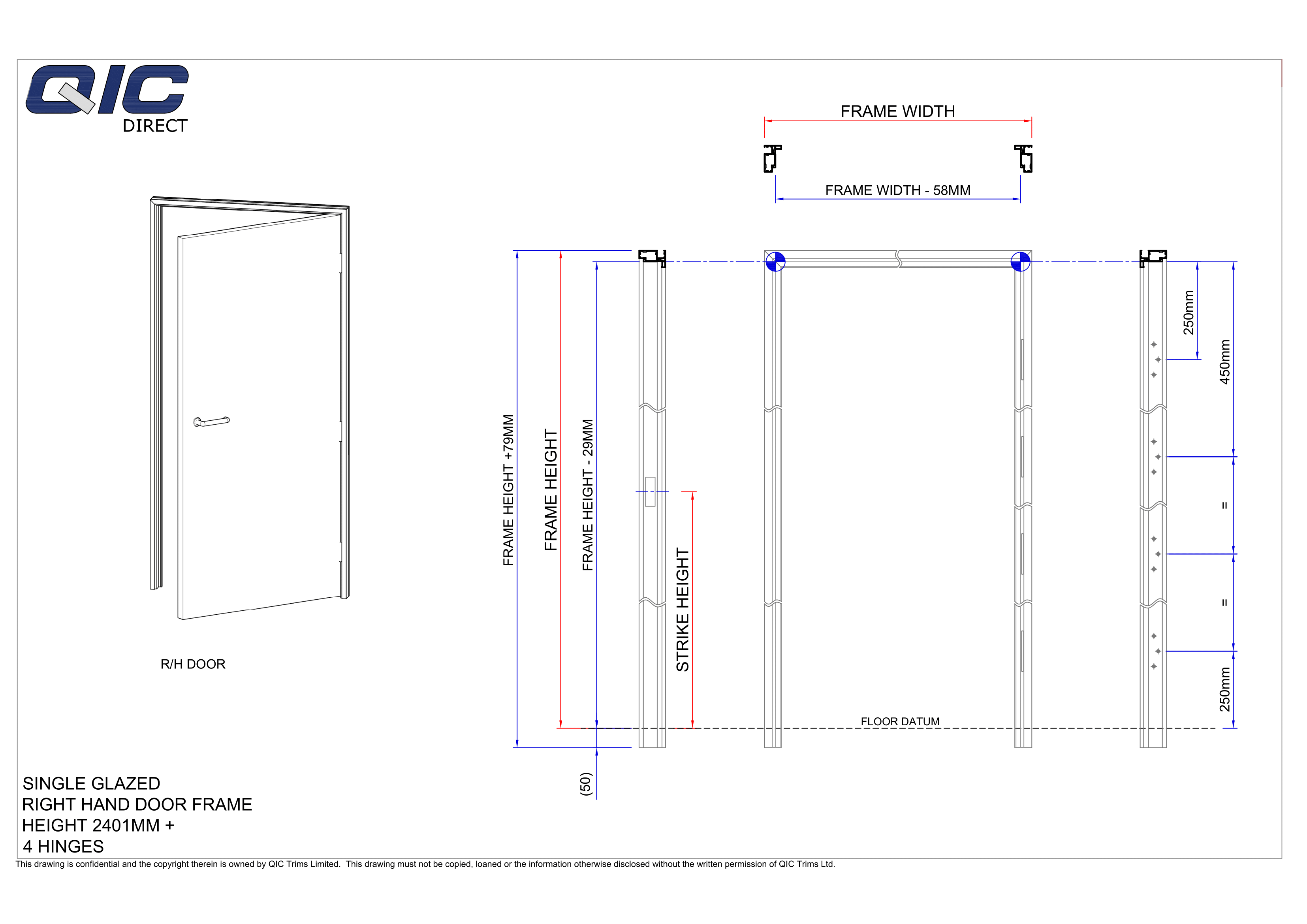

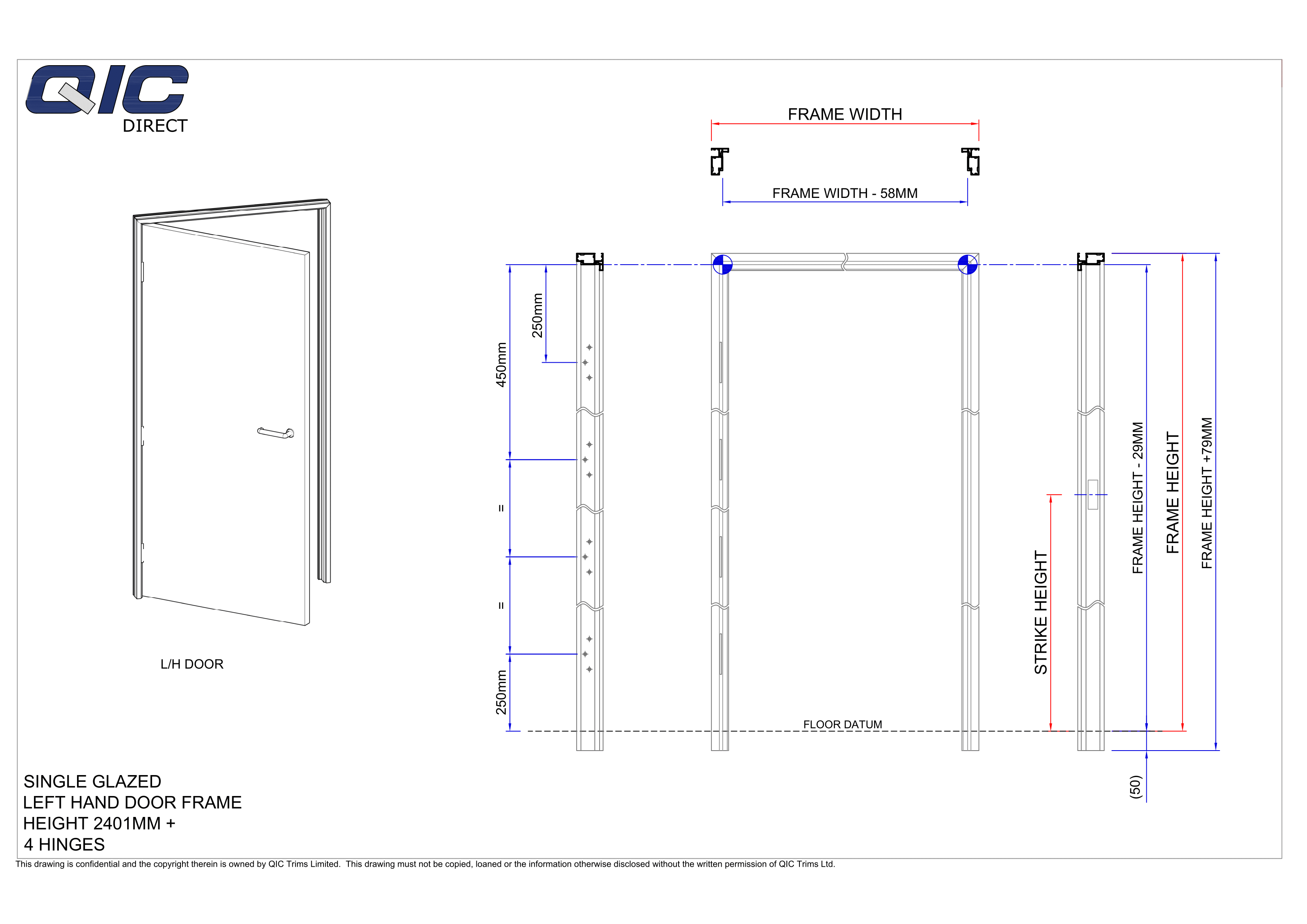

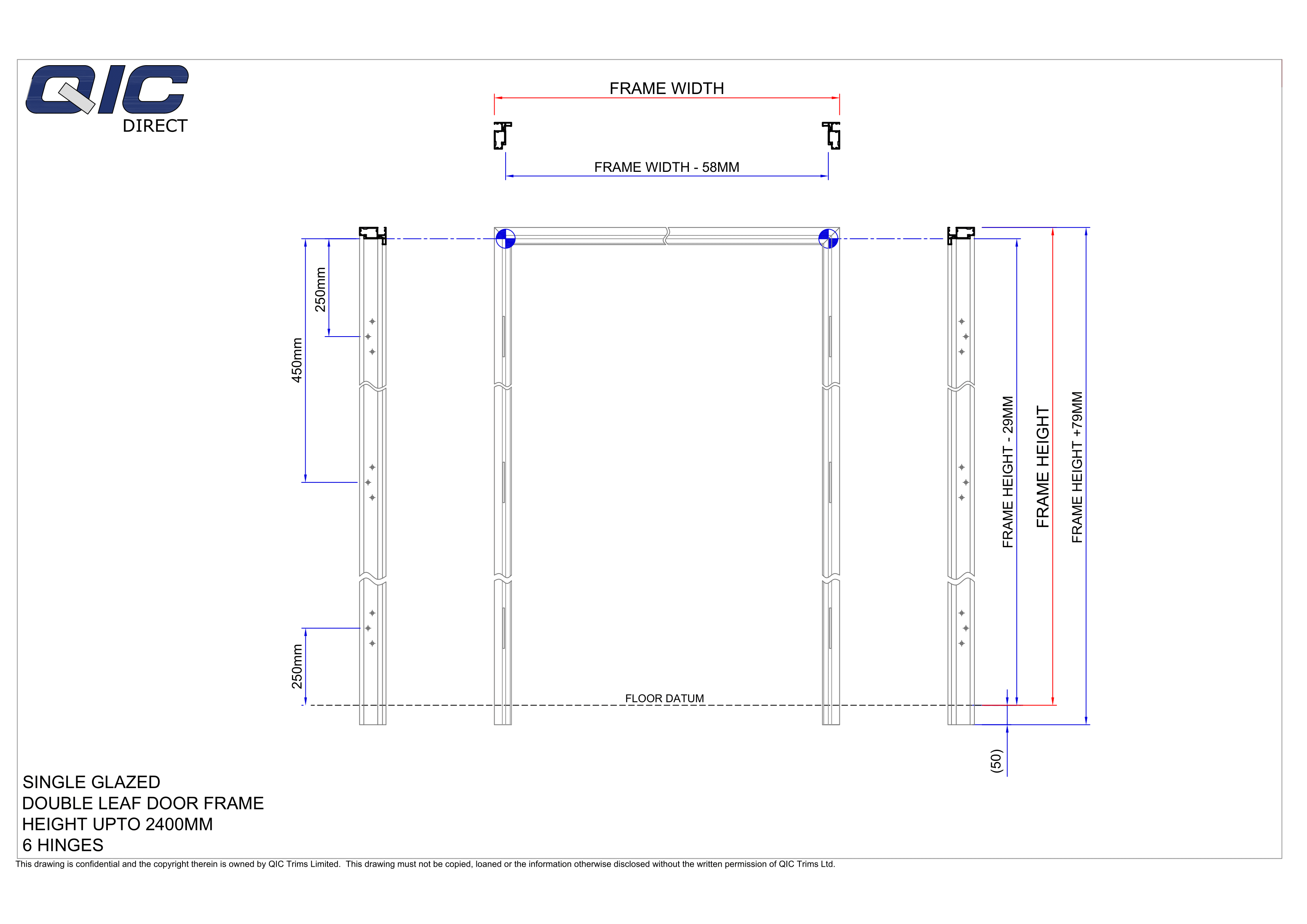

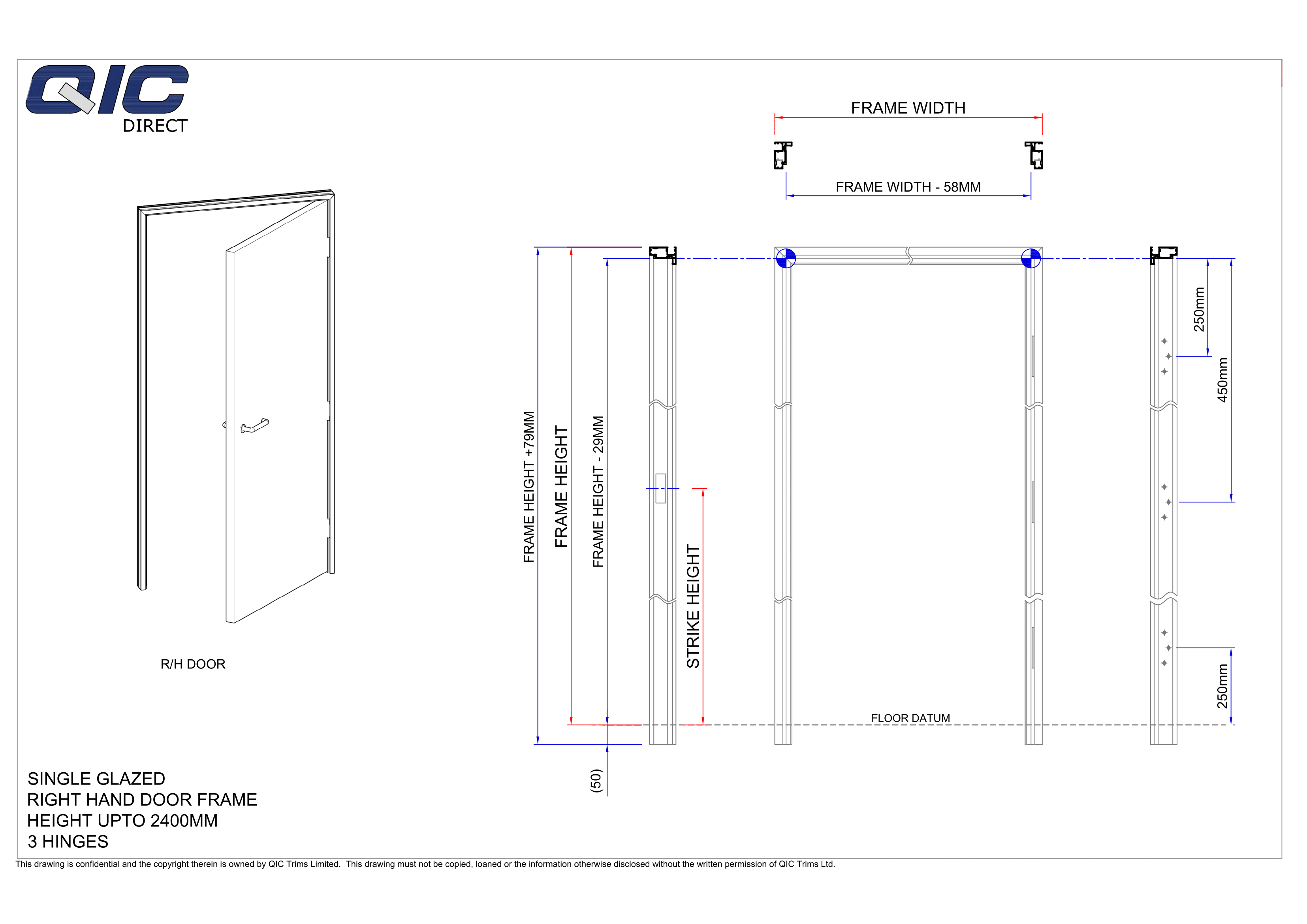

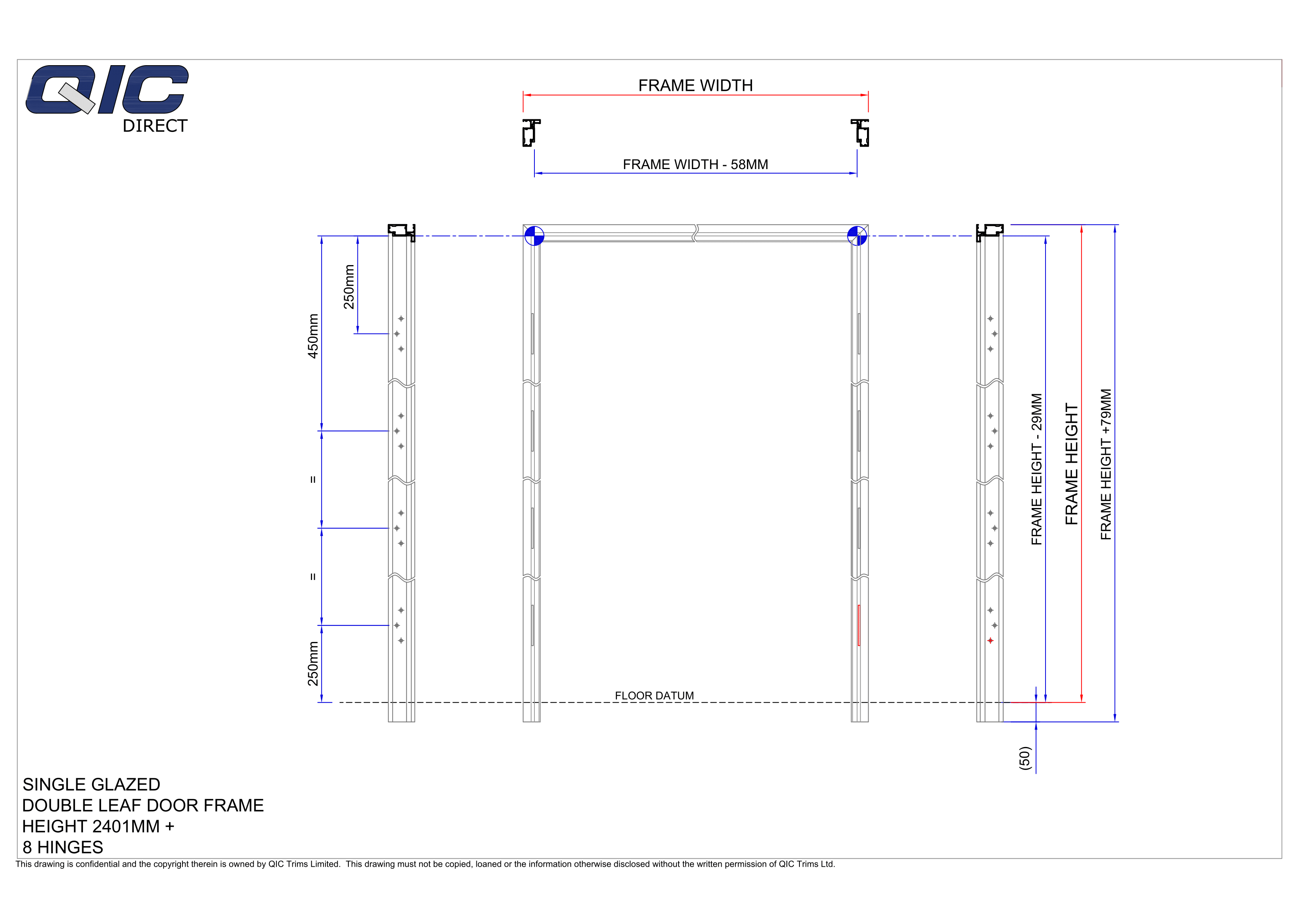

    Configure for a timber or glass door, left hand, right hand or double leaf.

  • Hardware if required

    Strike plates and hinges can be supplied if required.

  • Complete frame kit

    Supplied with cleats, gaskets and seals for fitting.

  • 10–12.8mm glass

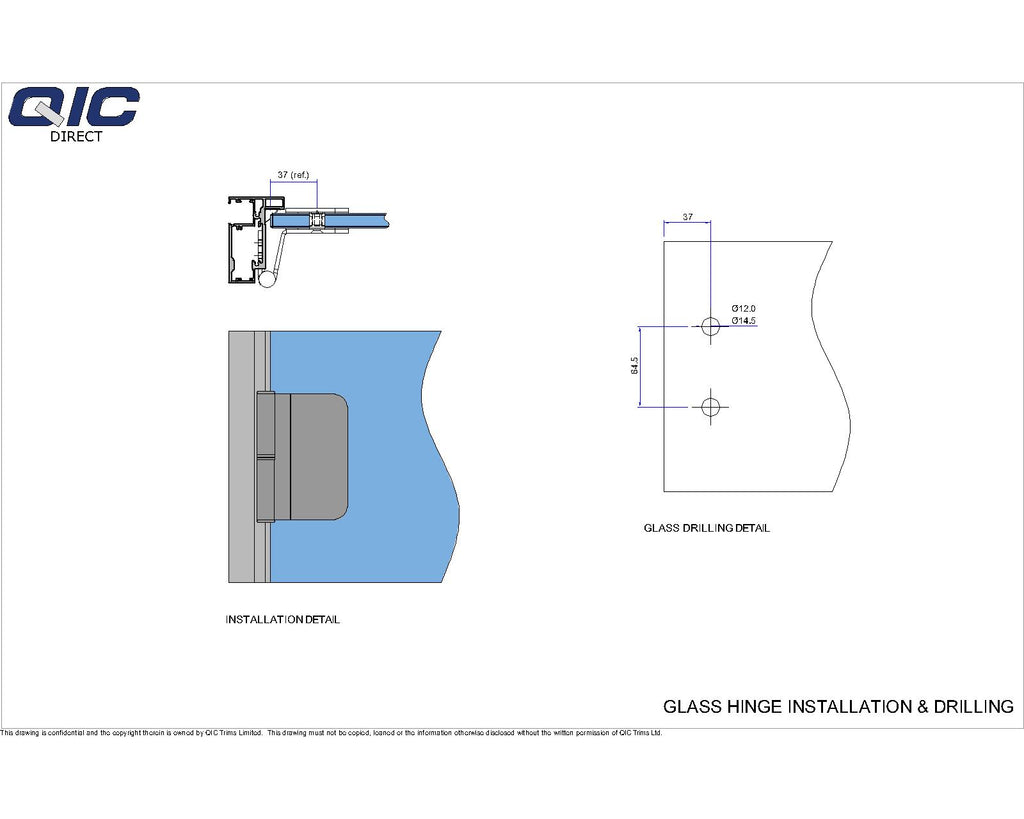

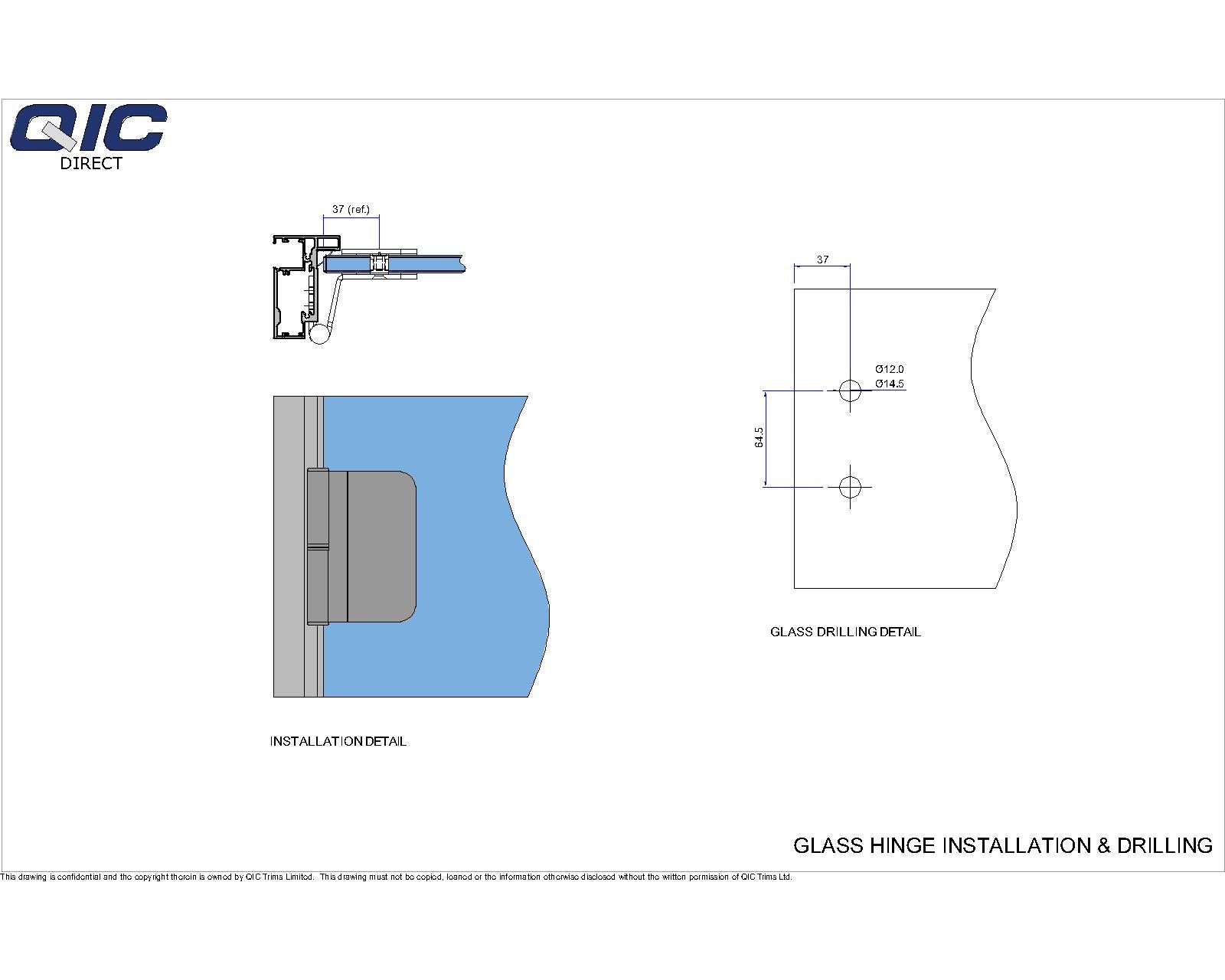

    Takes 10 to 12.8mm glass with black or clear gaskets.

  • Corrosion resistant

    Durable, corrosion-resistant aluminium construction.

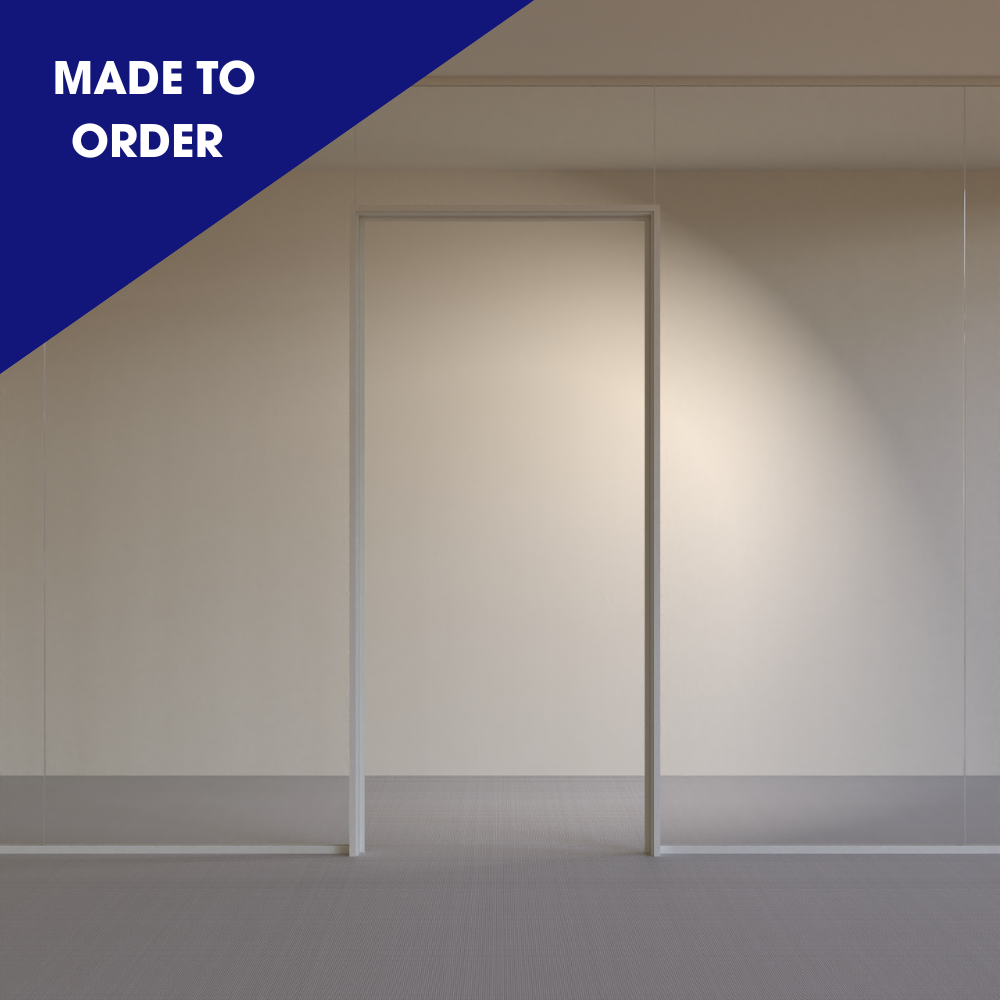

Single Glazed Aluminium Glazing Door Frame

  • High-quality aluminium doorframes for residential and commercial use
  • Made to order to specific size required
  • Supplied with cleats, gaskets and seals for fitting
  • Strike plates and hinges supplied if required
  • 10 to 12.8mm glass thickness
  • Durable and corrosion-resistant aluminium construction
  • Easy to install
  • Modern and sleek design to compliment any interior
  • Available in 4 standard colours.  Special colours available on request
  • Compatible with hardware from QIC Direct
  • Eco-friendly aluminium, fully recyclable
  • Customisable options available upon request

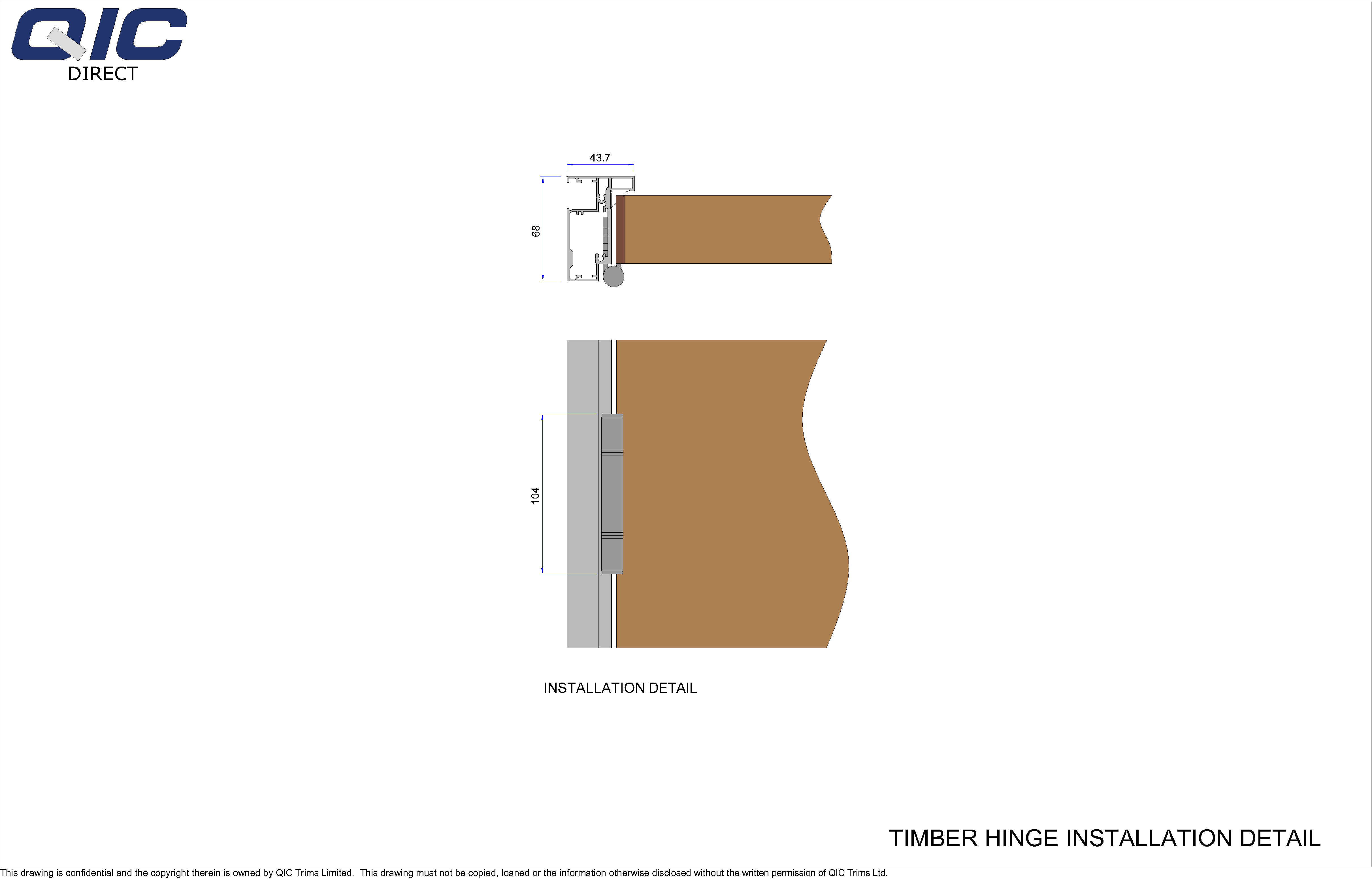

If surface-mounting side-hung hinges, a wood insert is required.

SINGLE GLAZED WOOD INSERT

<table><tbody><tr><td>Product Type</td><td>Single glazed aluminium door frame (made to order)</td></tr><tr><td>Height Options</td><td>0-2150 / 2151-2400 / 2401-2750 mm</td></tr><tr><td>Door Type</td><td>Timber or glass</td></tr><tr><td>Hand</td><td>Left / right / double leaf</td></tr><tr><td>Glass Thickness</td><td>10 - 12.8 mm</td></tr><tr><td>Material</td><td>Aluminium 6063-T6</td></tr><tr><td>Finishes</td><td>4 stock colours (special colours on request)</td></tr></tbody></table>

What sizes can I order?

Choose a height bracket: up to 2150mm (standard), 2151-2400mm (tall) or 2401-2750mm (extra tall).

Which door types does it suit?

Timber or glass doors, in left hand, right hand or double leaf configurations.

What is the lead time?

This frame is made to order. The current lead time is shown at the top of the page.

Do I need a wood insert?

If surface-mounting side-hung hinges, a wood insert is required (sold separately).

Can I get a different colour?

Yes. Other RAL colours and finishes are available on request. Email sales@qic-direct.com with the colour you need and we will confirm price and lead time.

What's included

  • 1 x made-to-order single glazed aluminium door frame
  • Cleats
  • Gaskets and seals
  • Strike plates and hinges (if required)

Downloads

Buying & Installation Guide

How to configure your door frame

1 · Choose your height bracket

Standard (to 2150mm), tall (2151-2400mm) or extra tall (2401-2750mm).

2 · Choose door type & handing

Timber or glass door; left hand, right hand or double leaf.

3 · Confirm measurements

Enter the inside mitre width and inside height required.

4 · Choose colour

One of 4 stock colours, or ask about special colours.

5 · Add a wood insert if needed

Required for surface-mounted side-hung hinges.
×
