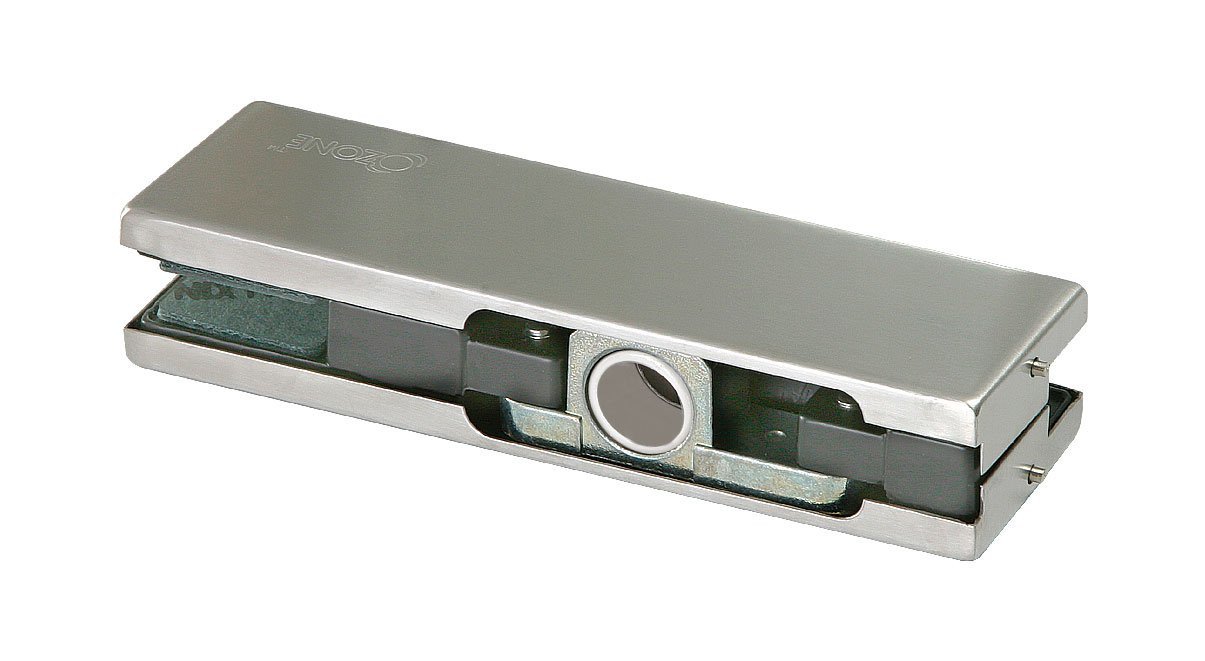

Hydraulic Patch Set For Glass Door (Heavy Duty) - Stainless

Stainless Glass Door Hydraulic Patch Set Heavy Duty

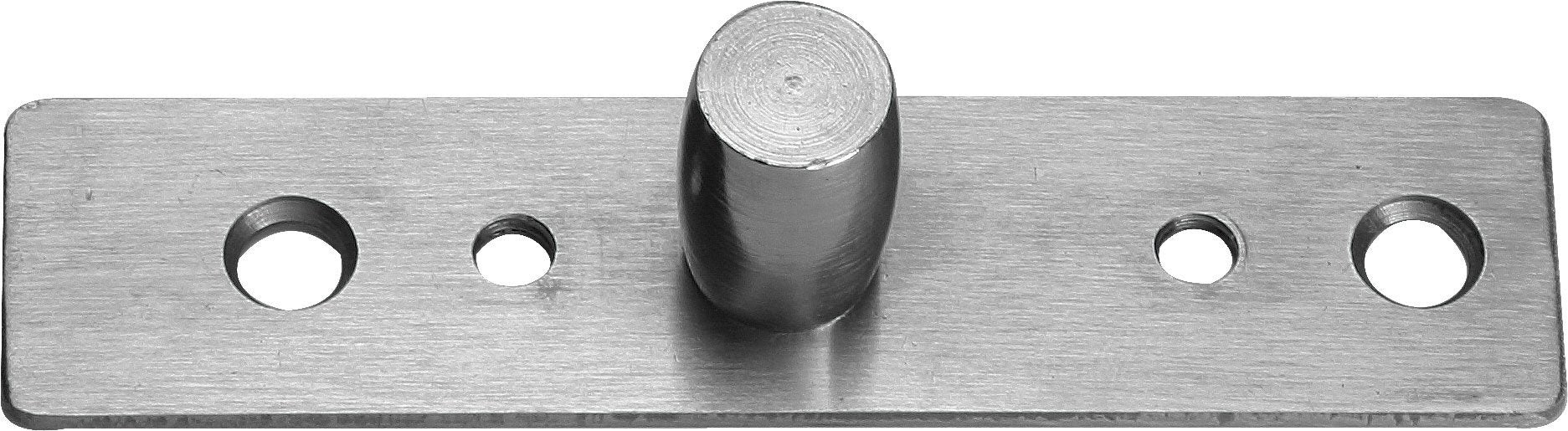

• Top Pivot Plate & Top Patch (Choice Of Top Patch Size)
• EN 1154 Compliant
• Maximum Door Load Weight 100 kg
• Maximum Door Width 1250 mm
• Glass Thickness 10 to 12 mm
• Maximum Door Opening 150° & Controlled to 135°
• Dual Swing Action, Two Speed Adjustments Closing & Braking
• Opening Cycle Tested to 500,000
• Fitting Alignment Adjustment +3 mm In Four Directions
• No Digging or Cutting of Floor Required For Quick and Easy Installation
• Material SSS 304 Standard Quick Release Cover Plate Fasteners
• 5 YEAR HYDRAULIC WARRANTY
• Color: Stainless Steel Brushed
• Door Type: Glass Door
• Hold Open & Non Hold Options Available
