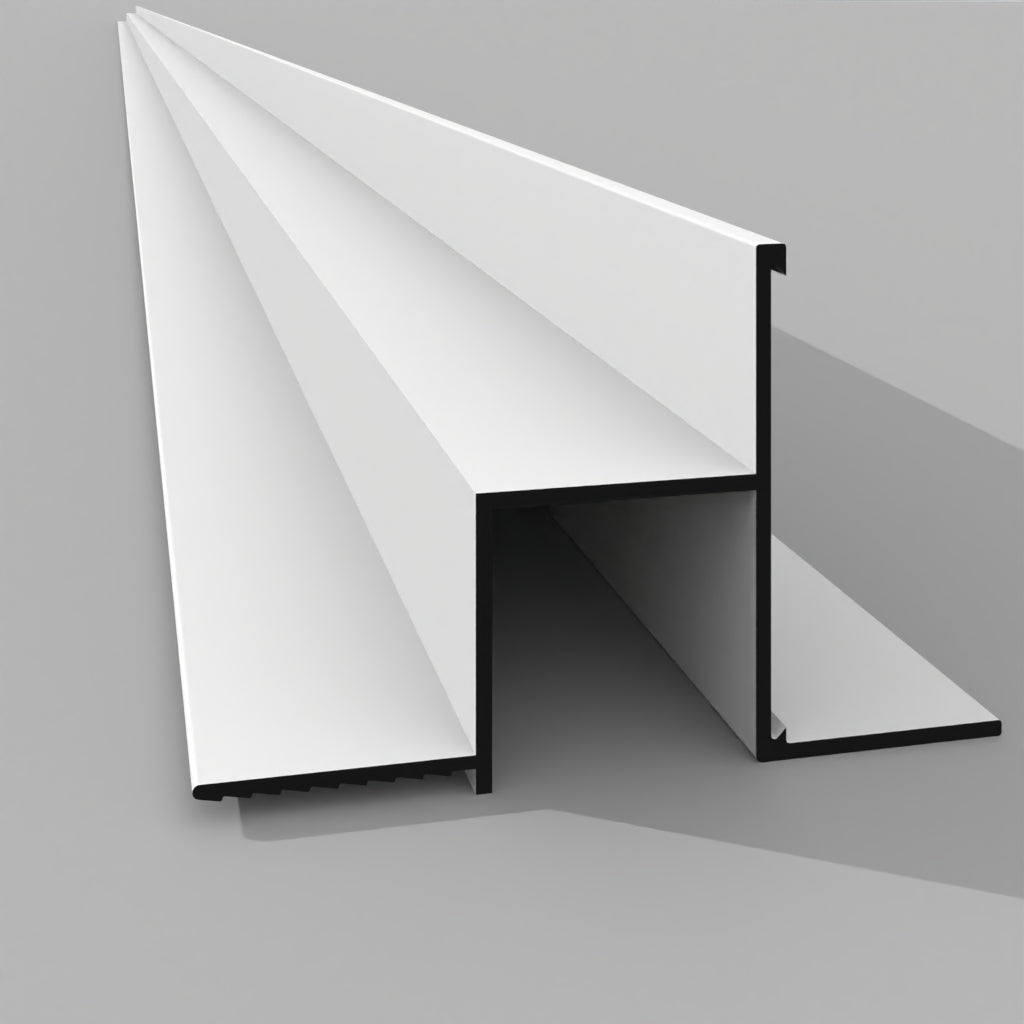

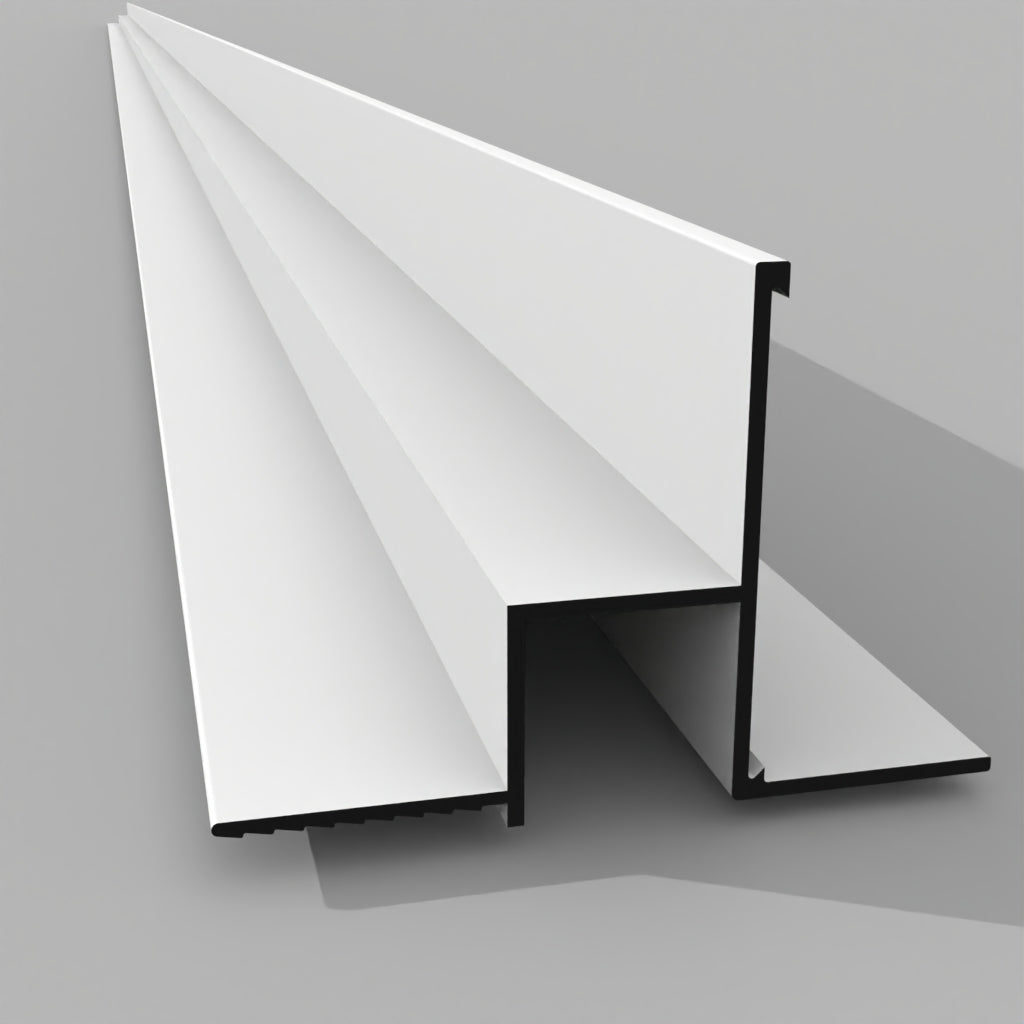

Type YA

SKU: YA0
£12.24
£14.69 Inc VAT
RAL 9010 In stock - Same day dispatch before 2pm
Other colours may vary - check the colour name for specific lead times

About this product

  • ✓SHADOW GAP JUNCTION
  • ✓YA0 / YA15 / YA20
  • ✓RAL 9010
  • ✓3.0M LENGTHS
Free UK DeliveryFree UK DeliveryOn hardware orders £200+
Money-back guaranteeMoney-back guaranteeBuy with confidence
Expert adviceExpert adviceHere to help

Key Features

  • Ceiling to plasterboard junction

    Creates junction details between mineral fibre, GRG or full module metal suspended ceiling systems and adjacent areas of plasterboard.

  • Architectural aluminium

    Extruded from architectural grade aluminium alloy to BS1474 for a straight, durable profile.

  • RAL 9010 as standard

    Powder coated RAL 9010. Other colours/finishes on request.

  • 3000mm lengths

    Supplied in standard 3.0m lengths for efficient runs and less waste on site.

  • Optional air vent

    The horizontal web can be factory slotted to form an air vent if required.

  • Can be curved

    Can be curved to suit your layout, dependent on radius.

All items are provided as standard in White – RAL 9010. If you require a different finish, please get in touch.

Type YA trims are used to create junction details between mineral fibre, g.r.g or full module metal suspended ceiling systems and adjacent areas of plasterboard. The horizontal web of the shadowgap designs can be factory slotted to form an air vent if required. Curved trims manufactured from composite sections to reproduce type YA trims are available.

<table><tbody><tr><td>Product Type</td><td>Type YA trim</td></tr><tr><td>Sizes</td><td>YA0 / YA15 / YA20</td></tr><tr><td>Length</td><td>3000 mm</td></tr><tr><td>Material</td><td>Aluminium 6063-T6</td></tr><tr><td>Finish</td><td>Powder coated RAL 9010 - other RAL on request</td></tr><tr><td>SKU</td><td>YA0 / YA15 / YA20</td></tr></tbody></table>

What is this trim used for?

Creates junction details between mineral fibre, GRG or full module metal suspended ceiling systems and adjacent areas of plasterboard.

Which sizes are available?

YA0, YA15, YA20. See the Data Sheet tab for each profile's dimensions.

What accessories do I need?

Ceiling trim joining cleats and Suspension clip cleats are available for this profile.

Can this trim be curved?

Yes, dependent on the radius needed. Email sales@qic-direct.com with the trim and the radius required and we will check it is possible and send a quote.

Can I get a different colour?

Yes. Other RAL colours and finishes are available on request. Email sales@qic-direct.com with the colour you need and we will confirm price and lead time.

Where can I find the full dimensions?

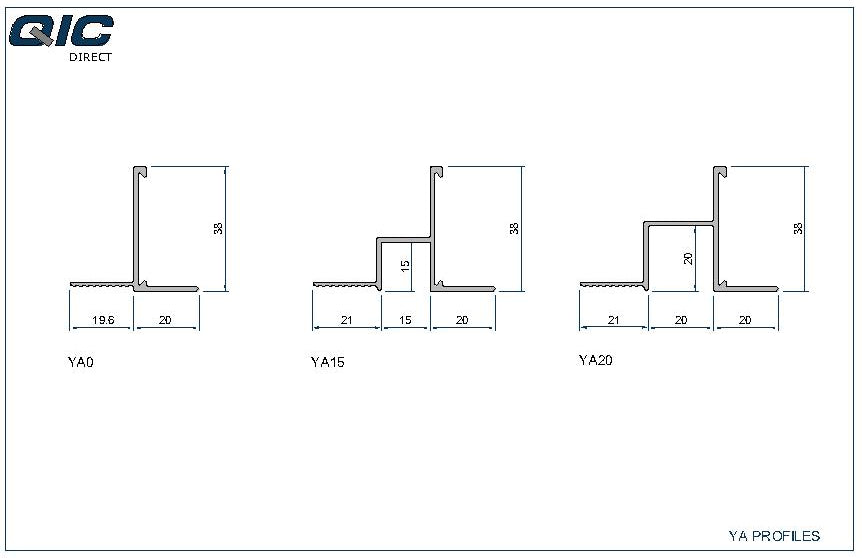

Drawings are in the Data Sheet tab next to the description. If you need a dimension that is not listed, call us on 01280 277940.

How quickly will my order arrive?

For stock items we aim to deliver next working day on orders placed before 2pm (UK mainland). If an item is out of stock you will be advised of a delivery date when you order.

What's included

  • 1 x 3000mm length (chosen size)
  • Powder coated RAL 9010 finish

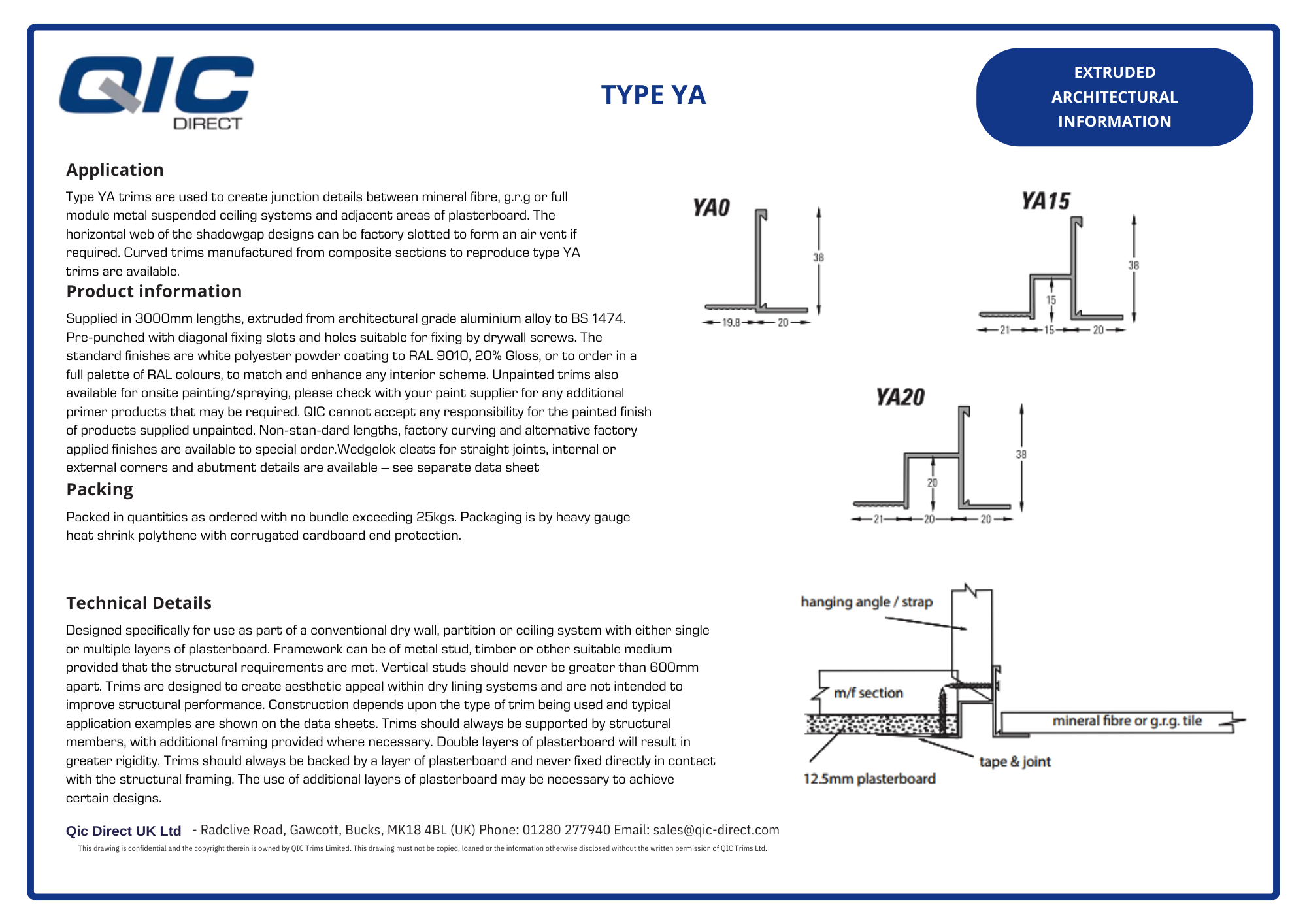

Downloads

Buying & Installation Guide

How to fit Type YA

1 · Choose your size

YA0 (flush), YA15 or YA20 (15/20mm shadow gap).

2 · Fix to the framing

Fix the trim to the hanging angle/strap of the ceiling at the edge of the plasterboard area. Hang with suspension clip cleats where needed.

3 · Board

Fit the 12.5mm plasterboard over the plastering fin and fix through the pre-punched diagonal slots in the plastering fin with standard drywall screws. The trim must be backed by board.

4 · Lay tiles & join

Rest the mineral fibre or GRG tiles on the trim's support leg. Join lengths with ceiling trim joining cleats.

5 · Finish

Tape and joint the board side, skim and decorate. The shadow-gap web can be factory slotted as an air vent.
×
