Access Panels

Flipfix Access Panel Plasterboard door, Beaded Frame, Budget Lock 1 hour fire rated

SKU: FF060PDBFBL150X150
£48.31
£57.97 Inc VAT
In stock - Same day dispatch before 2pm

About this product

  • ✓PLASTERBOARD DOOR
  • ✓BEADED FRAME
  • ✓1 HOUR FIRE RATED
  • ✓RAL 9010
Free UK DeliveryFree UK DeliveryOn hardware orders £200+
Money-back guaranteeMoney-back guaranteeBuy with confidence
Expert adviceExpert adviceHere to help

Key Features

  • Beaded frame

    Manufactured with a beaded frame for tape and jointing / skim-coat plastering.

  • Plasterboard door

    Fitted with a plasterboard faced door for tape and jointing / skim-coat plastering.

  • FlipFix fixing

    Tool-free FlipFix device clamps to the back of the board (8-32mm) - no need to remove the door.

  • Budget lock

    Door leaf locks with a budget lock as standard - other lock options on request.

  • 1 hour fire rated

    Provides 1 hour fire resistance.

  • RAL 9010 30% gloss

    Powder coated RAL 9010 30% gloss. Other colours available on request.

It is manufactured with a Beaded frame for tape and jointing / skim-coat plastering. The panel has a Plasterboard faced door for tape and jointing /skim-coat plastering. The panels door leaf is locked in place via a Budget lock as standard other lock options are available upon request. The Panel is Powder Coated RAL 9010 30% Gloss. Other colours available upon request. This panel is for inspection use only and are not suitable for personnel access.

<table><tbody><tr><td>Product Type</td><td>Flipfix access panel</td></tr><tr><td>Door</td><td>Plasterboard</td></tr><tr><td>Frame</td><td>Beaded</td></tr><tr><td>Fire Rating</td><td>1 hour</td></tr><tr><td>Lock</td><td>Budget lock</td></tr><tr><td>Sizes</td><td>150 x 150 / 200 x 200 / 300 x 300 / 450 x 450 / 600 x 600 mm</td></tr><tr><td>Board Thickness</td><td>8 - 32 mm</td></tr><tr><td>Finish</td><td>Powder coated RAL 9010, 30% gloss</td></tr><tr><td>Use</td><td>Inspection only - not for personnel access</td></tr><tr><td>SKU</td><td>FF060PDBFBL[size]</td></tr></tbody></table>

What sizes are available?

150 x 150mm, 200 x 200mm, 300 x 300mm, 450 x 450mm, 600 x 600mm.

What size hole do I need?

Make the structural opening at least 5mm larger than the panel size (back of frame). E.g. a 600x600mm panel needs a 605x605mm hole.

Is it suitable for walking through?

No. This panel is for inspection use only and is not suitable for personnel access.

How is delivery charged?

Access panels are always shipped separately and their delivery charge is added on top of any other shipping in your order.

How quickly will my order arrive?

For stock items we aim to deliver next working day on orders placed before 2pm (UK mainland). If an item is out of stock you will be advised of a delivery date when you order.

What's included

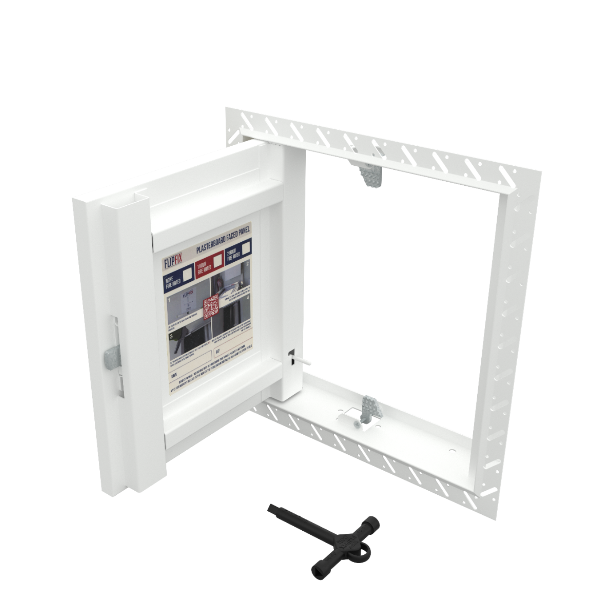

  • 1 x Flipfix access panel (frame and door)
  • Lock key
  • FlipFix fixing device

Buying & Installation Guide

How to fit your Flipfix access panel

1 · Cut the opening

Make the hole at least 5mm larger than the panel (e.g. 605 x 605mm for a 600 x 600mm panel).

2 · Insert the panel

No need to remove the door - open it with the key provided and place the panel into the aperture.

3 · Tighten FlipFix

Tighten the FlipFix device via the screw behind the door leaf to clamp onto the back of the board (8-32mm).

4 · Square & lock

Check the frame is square corner to corner, then lock the door - door and frame should sit flush.
×
