Hydraulic Floor Spring & Glass Door Patch Set - Stainless Brushed

£99.99 Regular price £124.99
SKU: HW00039 / HW00040 / HW00008 / HW00018

Hydraulic Floor Spring & Glass Door Patch Set - Stainless Brushed - Floor Spring & Patch Set is backordered and will ship as soon as it is back in stock.

Hydraulic Floor Spring & Glass Door Patch Set

  • Top Pivot Plate / Top Patch / Bottom Patch + Hydraulic Floor Spring Kit Includes, Floor Spring - Satin Stainless Steel 304 Cover Plate - x 4 Cover Plate Screws & Steel Cement Box With Plastic Spindle Dust Cover, Fitting Instructions Adjustment Spanner
  • Closing Force Adjustable EN 1 To 4
  • Fixed Rectangle Spindle
  • Recommended Max Door Weight Capacity: 65 To 150 kg
  • Max Door Width : Up To 1000 mm
  • Demand Hold Open Options Are 90 & 105 Degree's
  • Floor Box Adjustments: L=8 mm W=8 mm H=6 mm
  • Tested To 5,000,000 Cycles
  • Tested To EN 1154 Standard
  • Door Leaf Types: Glass / Wood / Aluminium
  • Compatible With Glass Door Bottom Patch Or Off-Set Style Pivot Hinges Available For Wood & Glass Doors

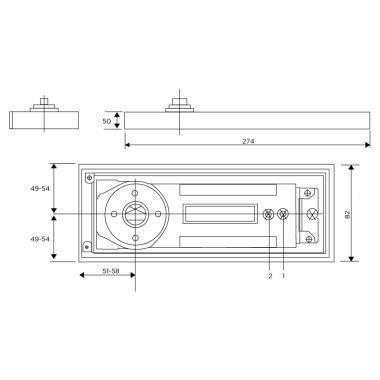

  • Dimensions: L=274 mm W=82 mm H=50 mm Including Cement Box

FLOOR BOX LINK BELOW

https://www.qic-ironmongery.co.uk/collections/hydraulic-floor-spring-closers/products/ozone-steel-raised-access-floor-box

    WWW.QIC-IRONMONGERY.CO.UK WWW.QIC-IRONMONGERY.CO.UK
    Video Model May Vary
